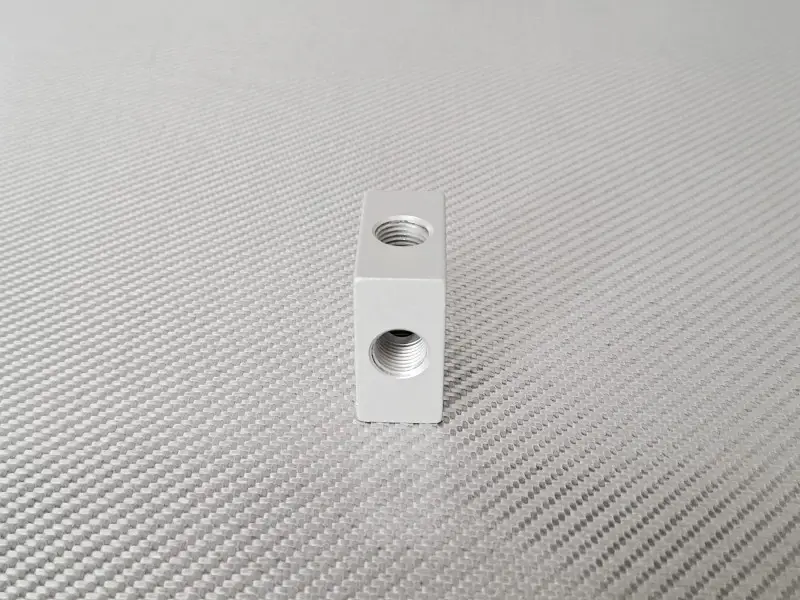

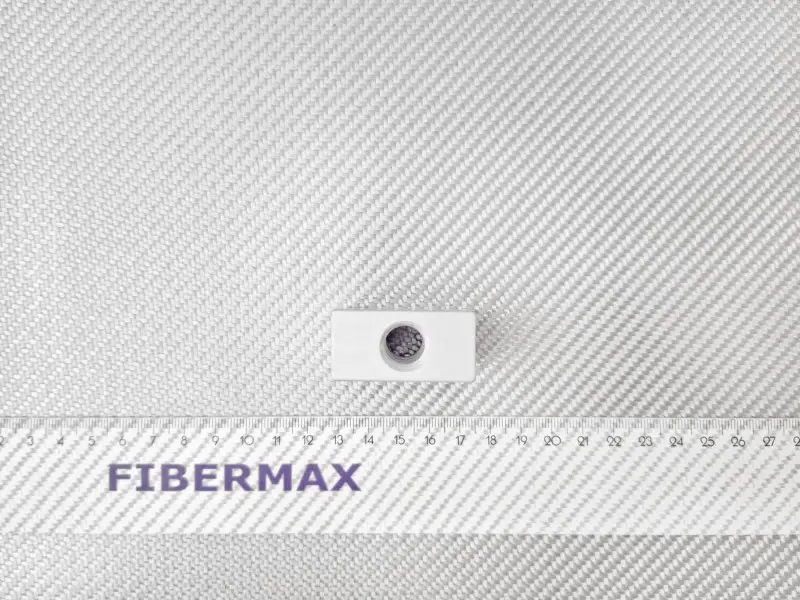

A manifold (distributor) is a component designed to efficiently distribute airflow in vacuum bagging and resin infusion processes. Featuring a square-shaped body, it is constructed from high-strength anodized aluminum, offering corrosion protection for long-lasting performance. It is equipped with 4 X 1/4'' thread ports, allowing secure attachment of standard corresponding connectors or fittings. These ports ensure a tight seal, preventing leaks and maintaining system integrity.

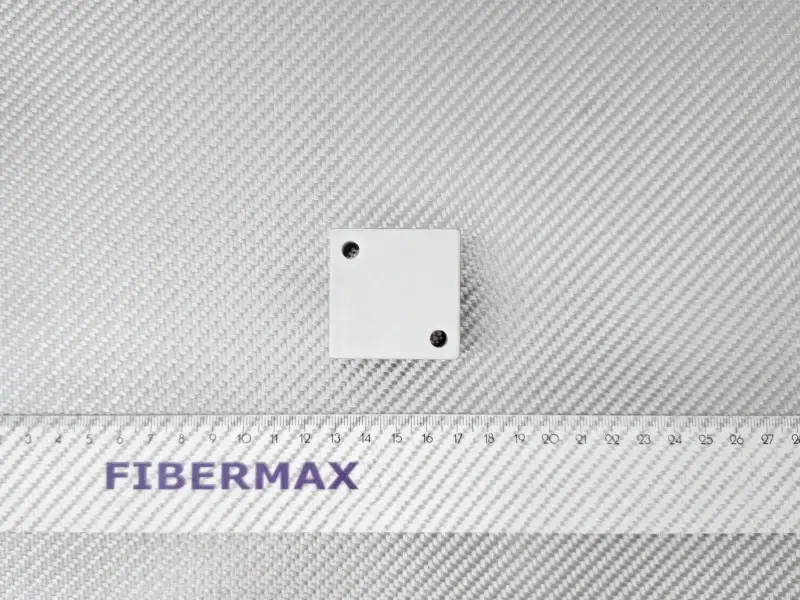

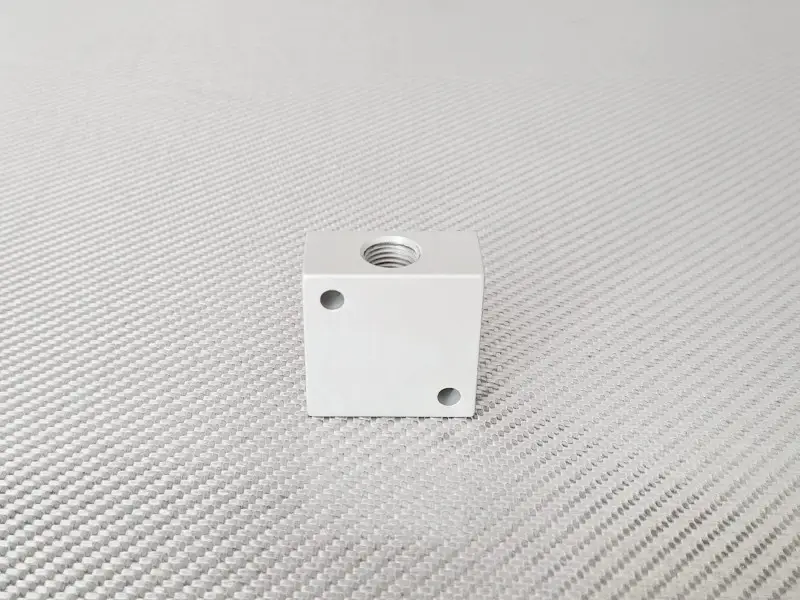

Besides the 4 ports, it also includes 2 small symmetrically placed mounting holes on opposite corners, for easy and stable installation onto any surface or panel. Its square design and precise alignment of the mounting holes make it an ideal choice for compact setups, providing space optimization while supporting the connection of multiple vacuum lines or ports in a controlled efficient manner.
This product is also included in the Fibermax vacuum and infusion kits, featuring perfect compatibility with the other components.
Technical characteristics
Dimensions (mm): 39 X 39 X 19
Mounting holes size (mm): 5
Dimensions (mm): 39 X 39 X 19
Mounting holes size (mm): 5
Connection thread: 1/4’’ (female)
Material: anodized aluminum
Material: anodized aluminum
