Choose Carbon Fiber Fabric by Specification, Not Appearance Alone
Carbon fiber fabric is a dry reinforcement used to build composite parts with a compatible resin and manufacturing process. A fabric listing tells you about the reinforcement, not the tested properties of your finished laminate. For a useful comparison, start with the tow size, weave, areal weight, width, fiber designation when available, and the quantity supplied in each product option.
Browse the products above for current sizes and prices. If you are purchasing for repeated production, compare the exact specification and supply format before requesting a bulk quotation. A fabric that looks similar in a photograph may have a different construction, weight or usable width.
Which Fabric Family Fits Your Project?

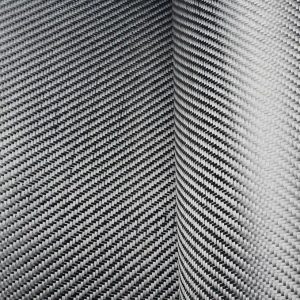

- Standard woven cloth: Compare the woven carbon fiber fabric options by the specifications stated on each product page. Tow size describes the approximate number of filaments in a yarn bundle; it does not by itself define fabric weight or laminate strength.

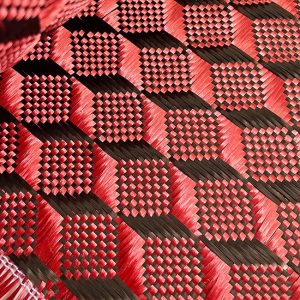

- Patterned appearance: Explore jacquard carbon fiber fabrics when the visible weave is part of the design brief. Check the actual pattern, color and construction of the selected product.
- Flatter woven texture: Review spread tow carbon fiber fabrics when tape width, surface appearance or thin-ply handling matters. Confirm the listed areal weight and width rather than assuming all spread tow products are interchangeable.
- Mixed-fiber appearance: Carbon and aramid hybrid fabrics contain more than one fiber type. Check the composition and construction before treating them as a substitute for all-carbon cloth.
Five Specifications to Check Before Ordering
1. Tow size and fiber grade
Labels such as 3K and 12K describe filament count per tow. Fiber designations such as T700 describe a different aspect of the material. Neither label alone tells you how a finished part will perform. For engineering work, request the applicable material and lot information for the exact item being considered.
2. Weave and handling
Plain and twill are different woven constructions. Plain weave can be easier to keep aligned during cutting, while twill may conform more readily to some curved shapes. Actual handling depends on the yarn, weave density, binder or sizing, and part geometry. Evaluate a sample on your tooling when drape or cosmetic appearance is critical.
3. Areal weight, width and order unit
GSM is the mass of dry fabric per square meter. It is not the thickness of a cured laminate. Check usable width, cut length or roll length, and whether the selected option is priced per square meter, cut piece or roll. Compare total usable area and shipping format when evaluating quotations.
4. Resin and process compatibility
Tell the supplier whether you plan a hand layup, vacuum infusion or another process. Resin compatibility, sizing, wet-out, consolidation and cure conditions need to be checked for the selected fabric and resin system. Do not infer process approval from a category name.
5. Evidence for the intended application
For structural or regulated use, define the required data sheet, inspection, traceability and finished-laminate testing before purchase. A product photograph or general carbon-fiber strength statement is not a substitute for evidence tied to the actual material and process.
Request a Carbon Fiber Fabric Quote
For a faster, comparable quotation, send the product link or target specification, weave, GSM, width, required area or roll quantity, intended process, destination country and requested delivery schedule. If you need a visible surface pattern, include a reference image or describe the finish. Contact Bulk Composites with your requirements; the team can confirm the current product option and commercial terms before you order.
Common Buying Questions
Is 12K fabric always heavier or stronger than 3K fabric?
No. Tow size is only one part of the construction. Compare the listed GSM, weave, yarn density and fiber grade. Finished-laminate properties also depend on the resin system, layup and manufacturing conditions.
Does a 200 GSM fabric make a laminate of a fixed thickness?
No. GSM measures the dry reinforcement per unit area. Cured thickness depends on the fabric architecture, number of plies, fiber volume fraction and consolidation. Use a process-specific laminate calculation or test panel when thickness matters.
Can I use a decorative fabric for a structural part?
Only after the exact material and finished construction have been evaluated against the part’s requirements. A decorative weave or product name does not establish structural suitability.
What should I send when asking for wholesale pricing?
Share the product or specification, quantity, preferred supply format, destination and timing. State any documentation or traceability requirement at the start so the quote can cover the right material and service.
