cork sheet 140 kg 5 mm

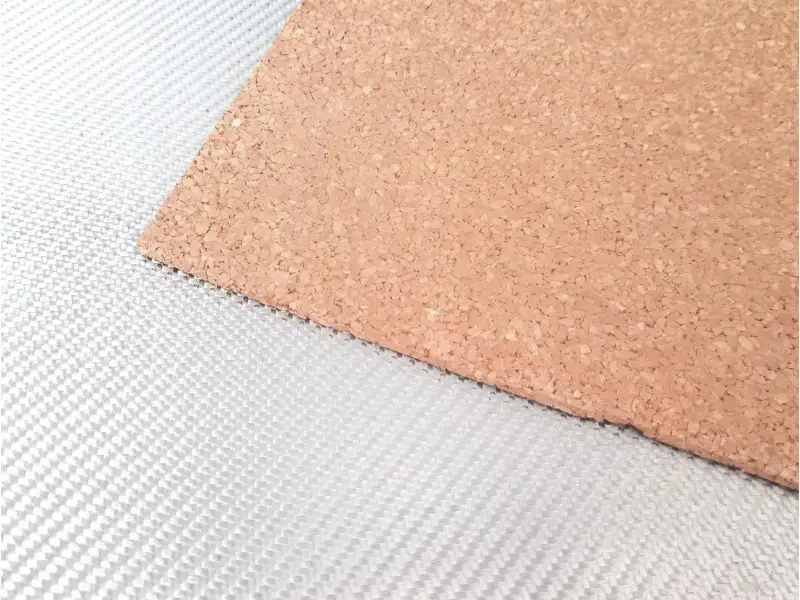

Cork sheet is a natural, eco-friendly and sustainable core material for composite applications, easily integrated into fast production cycles due to its low density, very good temperature resistance and good drape characteristics (flexibility). Cork is perfectly aligned with green specifications, and suitable for hand layup, vacuum bagging and infusion processes.
Width: 1.00 m
Thickness: 5 mm
Density: 140 kg / m3
Thickness: 5 mm
Density: 140 kg / m3
MECHANICAL PROPERTIES
Compressive strength (MPa): 0.30
Compressive modulus (MPa): 5.10
Tensile strength (MPa): 0.60
Shear strength (MPa): 0.90
Shear modulus (MPa): 5.9
Thermal conductivity (w/mk): 0.042
Loss Factor (1KHz): 0.022
Maximum Processing Temperature: 180 oC
Vacuum Bag Processing: up to 150 oC
FEATURES & BENEFITS
Closed air filled cell structure
Low water absorption
Rot resistance
Excellent FST (fire, smoke and toxicity) properties
High level of noise and vibration attenuation
