diolen polyester fabric, diolen fibre 164s black, diolen polyester fabric twill 200 g
TECHNICAL CHARACTERISTICS
Areal weight: 200 g / m2
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: Diolen 164S fiber (black) 1670 dtex
Weft type of yarn: Diolen 164S fiber (black) 1670 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6 ends (threads) / cm
Weft thread count: 6 ends (threads) / cm
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: Diolen 164S fiber (black) 1670 dtex
Weft type of yarn: Diolen 164S fiber (black) 1670 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6 ends (threads) / cm
Weft thread count: 6 ends (threads) / cm
This fabric can be used to imitate carbon. Although it does not have as deep 3D impression, it can be used on the back side of products (that are usually not varnished), to lower cost of material.

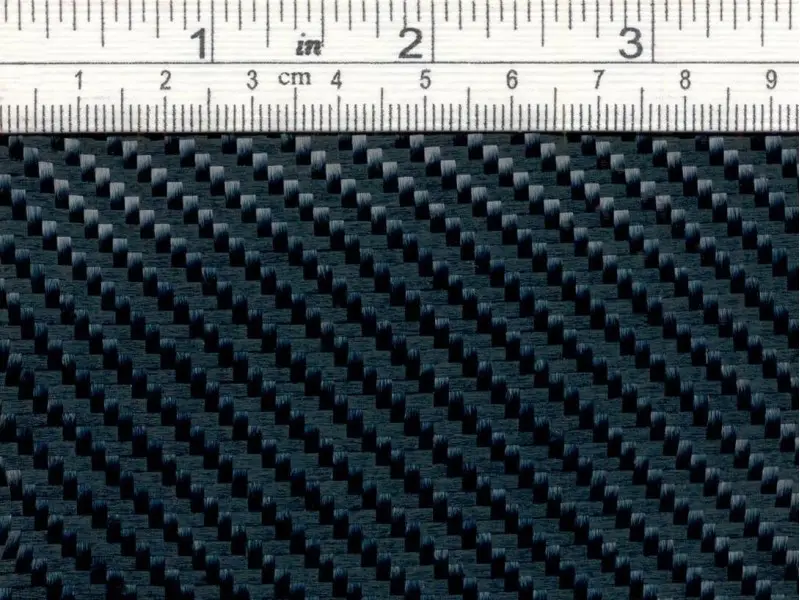

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
