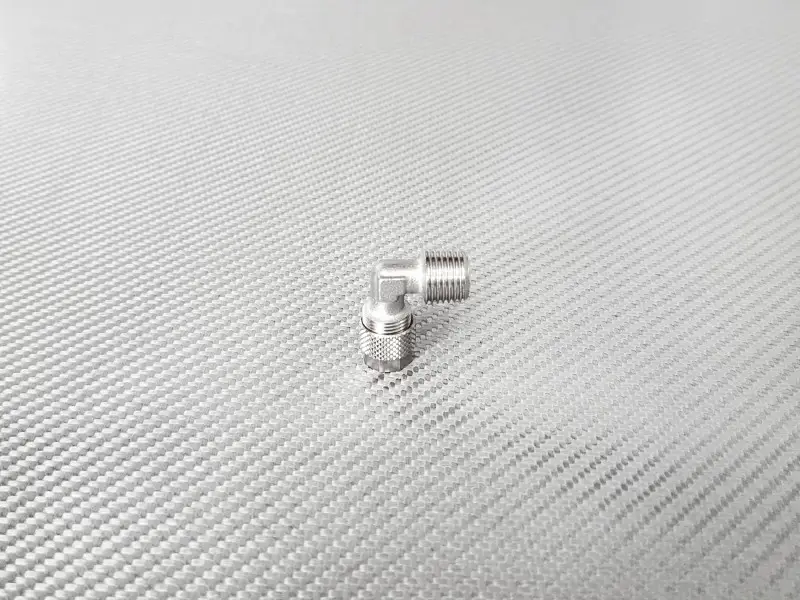

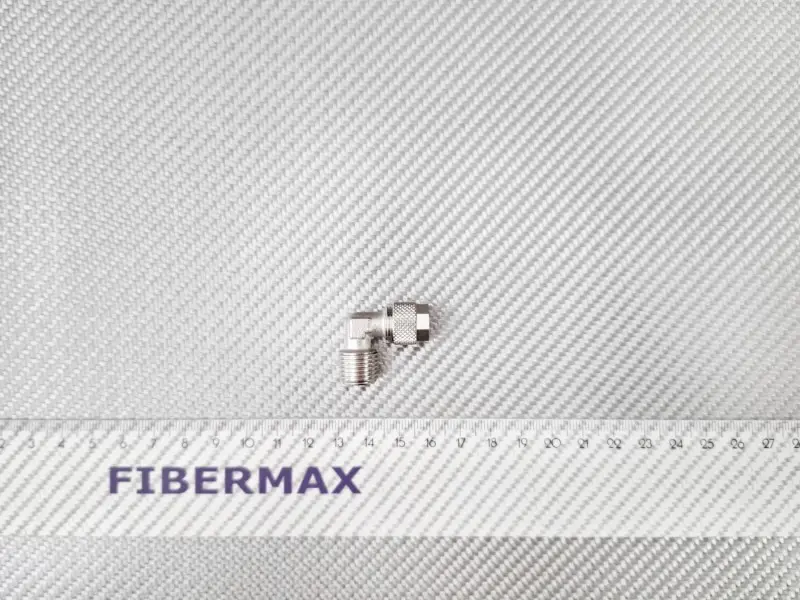

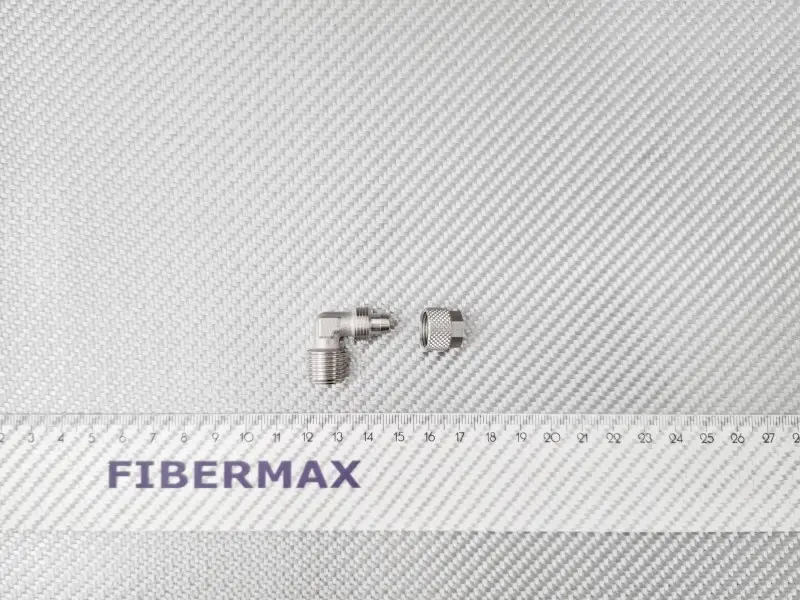

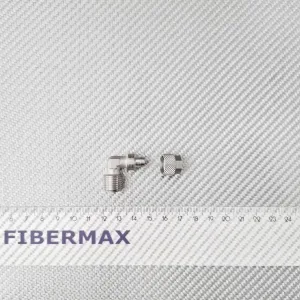

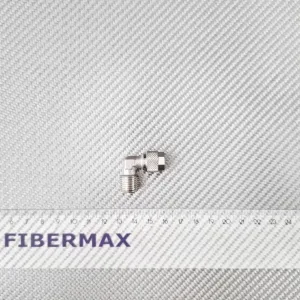

Elbow pipe connector is a conical tube fitting, specifically designed for use in vacuum bagging and resin infusion processes. Its conical design enhances the sealing of the tube by naturally tightening it, both in vacuum and high-pressure environments. Made from high-quality brass, it offers excellent corrosion resistance and durability in harsh conditions across a wide range of temperatures and pressures.
Featuring a 1/4" threaded male end, it is compatible with standard fittings, facilitating easy connection to corresponding Fibermax components, such as the air taps. The opposite end is designed to securely connect with a 6X8 tube. Its compact 90o elbow design ensures efficient space utilization, making it ideal for tight spaces or where change of direction is necessary, and straight pipe connectors would be impractical. With a robust construction and reliable performance, it is an essential component in automotive, aerospace, and marine industries.
This product is also included in the Fibermax vacuum and infusion kits, featuring perfect compatibility with the other components.
Technical characteristics
Dimensions (mm): 25 X 25 X 13
Connection thread: 1/4" (male)
Operating temperature (oC): -18 to 70
Maximum operating pressure (bar): 15
Material: Nickel plated brass
