fiberglass fabric, glass fiber e-glass, fibreglass fabric 1830 g
TECHNICAL CHARACTERISTICS
Areal weight: 1830 g / m2
Weaving style: 3D – non crimp
Width: 1.52 meters
Warp
primary: E Glass fiber, (3 x) 1100 tex
secondary (Z direction): E Glass fiber, 134 tex
52%, 8.0 ends (threads) / cm
Weft
E Glass fiber, (4 x) 735 tex
Weaving style: 3D – non crimp
Width: 1.52 meters
Warp
primary: E Glass fiber, (3 x) 1100 tex
secondary (Z direction): E Glass fiber, 134 tex
52%, 8.0 ends (threads) / cm
Weft
E Glass fiber, (4 x) 735 tex
48%, 11.4 ends / cm

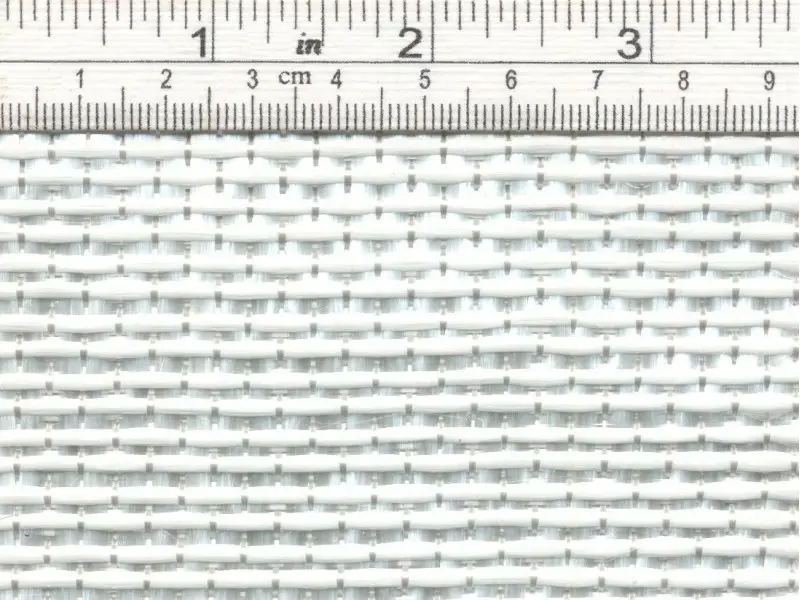

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
