fiberglass fabric, glass fiber ec11 136, fibreglass fabric twill 275 g
TECHNICAL CHARACTERISTICS
Areal weight: 275 g / m2
Weaving style: Twill 2X2
Width: 1.00 meter
Warp type of yarn: Glass fiber EC11 136
Weft type of yarn: Glass fiber EC11 136
Warp reinforcement ratio: 40%
Weft reinforcement ratio: 60%
Warp thread count: 8 ends (threads) / cm
Weft thread count: 5.6 ends (threads) / cm
Weaving style: Twill 2X2
Width: 1.00 meter
Warp type of yarn: Glass fiber EC11 136
Weft type of yarn: Glass fiber EC11 136
Warp reinforcement ratio: 40%
Weft reinforcement ratio: 60%
Warp thread count: 8 ends (threads) / cm
Weft thread count: 5.6 ends (threads) / cm

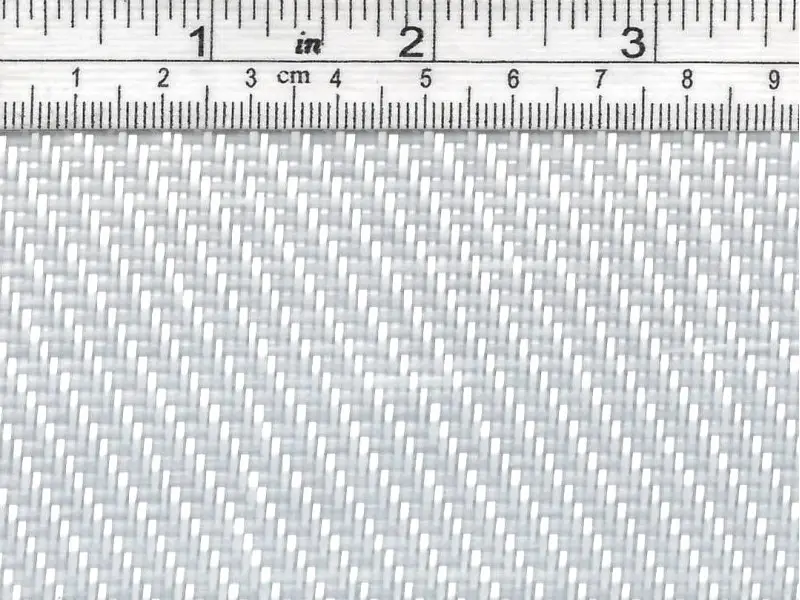

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
