fiberglass fabric, glass roving 1200 tex, fibreglass fabric ud 520 g
TECHNICAL CHARACTERISTICS
Areal weight: 520 g / m2
Weaving style: Unidirectional
Width: 0.50 meters
Warp type of yarn: Glass roving 1200 tex
Weft type of yarn: Thermoplastic 110 tex
Warp reinforcement ratio: 97%
Weft reinforcement ratio: 3%
Warp thread count: 4 ends (threads) / cm
Weft thread count: 1.5 ends (threads) / cm
Weaving style: Unidirectional
Width: 0.50 meters
Warp type of yarn: Glass roving 1200 tex
Weft type of yarn: Thermoplastic 110 tex
Warp reinforcement ratio: 97%
Weft reinforcement ratio: 3%
Warp thread count: 4 ends (threads) / cm
Weft thread count: 1.5 ends (threads) / cm

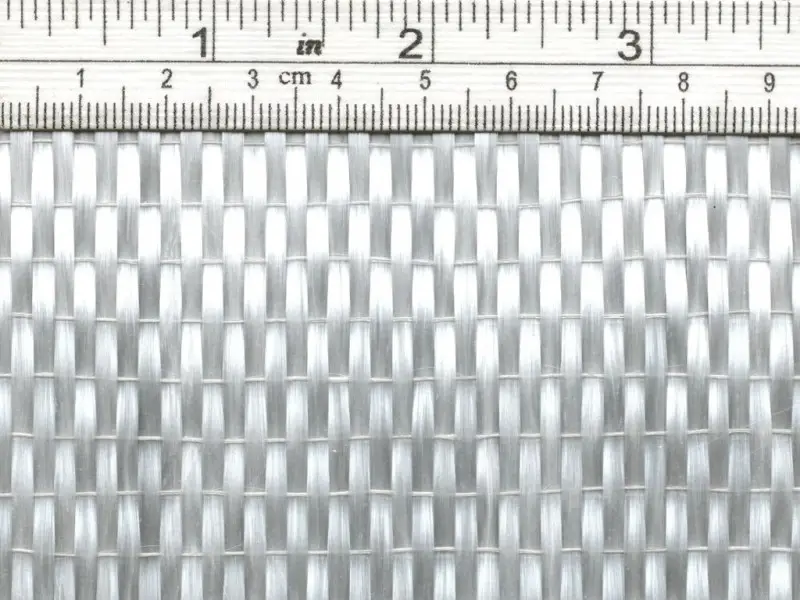

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
