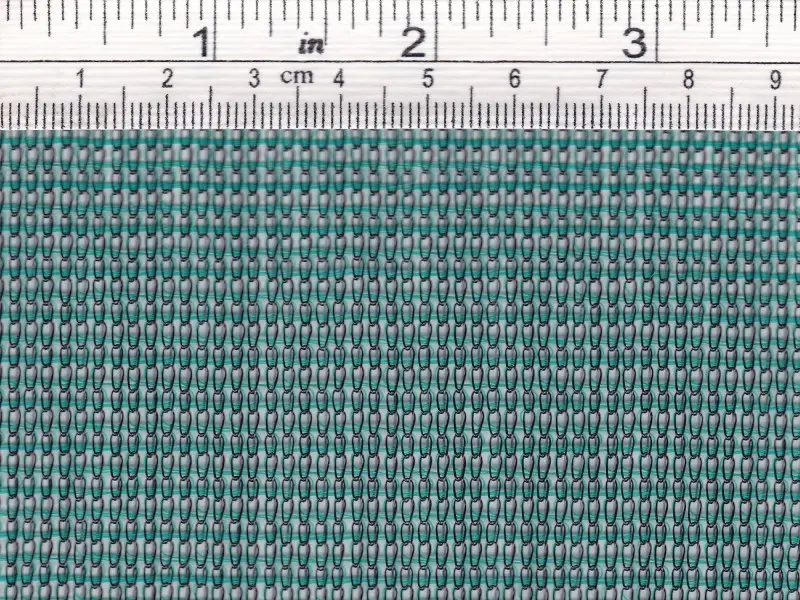

Flow fabric, also known as flow media or flow mesh, is a material made from synthetic fibers. It is utilized in vacuum-assisted resin infusion processes in composite manufacturing. Designed to facilitate uniform resin distribution, it ensures resin flows evenly through the composite laminate during infusion. It is positioned between the composite layup and the vacuum bag and helps fill all areas of the mold, reducing the risk of dry spots and uneven curing. Widely used in aerospace, UAV, automotive, and marine industries, flow fabric is essential for achieving high-quality, defect-free composites by ensuring consistent resin application.
Technical characteristics
Material: flow fabric green (harder)
Widths: 0.90, 1.50 and 2.00 m
Weight: 135 g / m2
Thickness: 60 μ
Widths: 0.90, 1.50 and 2.00 m
Weight: 135 g / m2
Thickness: 60 μ
Features & Benefits
• Its fibrous composition allows for optimal resin flow and distribution throughout the composite layup.
• Made from synthetic fibers known for durability and efficiency.
• Works effectively with other infusion materials like peel ply, breather fabric, and vacuum bagging systems.
• Promotes even resin flow, ensuring complete impregnation of the composite and reducing the risk of defects.
• Helps eliminate areas of incomplete resin impregnation, improving the overall integrity of the composite.
• Streamlines and simplifies the setup of the resin infusion process, helping to achieve consistent, high-quality results.
