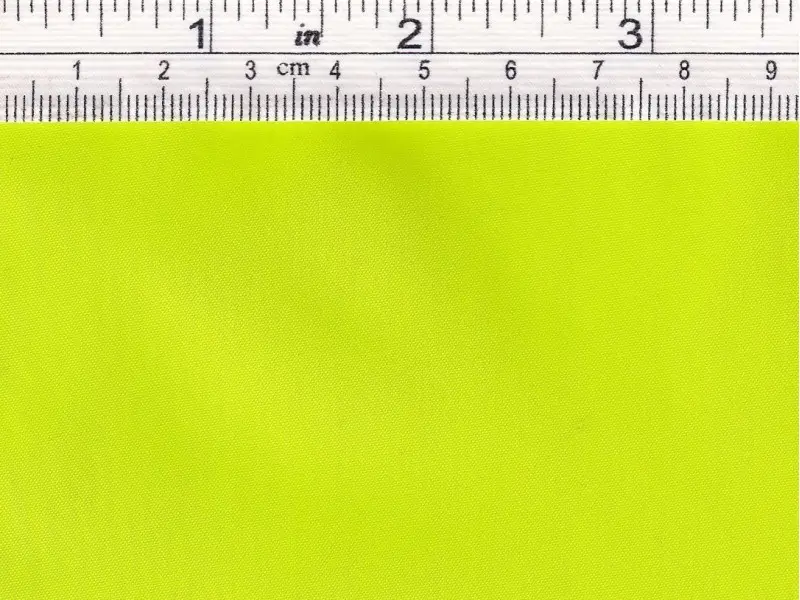

VC008 is a high quality Nylon 66 peel ply fabric, suitable for use with different resin systems including epoxy, polyester, and vinyl ester, and a range of composite manufacturing technologies like autoclave, vacuum bagging, resin infusion, hand lamination, and other finishing processes. It is easily removed after curing of the composite, leaving a clean surface without contamination.
Technical characteristics
Material: Nylon 66
Weight: 85 g / m2
Width: 1.50 meters
Max using temperature: 201 oC
Material: Nylon 66
Weight: 85 g / m2
Width: 1.50 meters
Max using temperature: 201 oC
Tensile strength: 315 N/cm
Raw material: ≥17 N
Purity: <0.3 %
Features & Benefits
• Made from durable Nylon 66, known for its high strength and resistance to wear and abrasion.
• It is highly resistant to chemicals and heat, making it ideal for high-temperature curing (up to 201 oC) in composite manufacturing.
• It is easily removable, leaving a clean surface without the need for additional work.
• Provides a uniform surface that enhances adhesion for subsequent layers or coatings.
• Widely used in aerospace, UAVs, automotive, and marine industries for high-quality finishes and reliable bonding.
Usage recommendation
• Made from durable Nylon 66, known for its high strength and resistance to wear and abrasion.
• It is highly resistant to chemicals and heat, making it ideal for high-temperature curing (up to 201 oC) in composite manufacturing.
• It is easily removable, leaving a clean surface without the need for additional work.
• Provides a uniform surface that enhances adhesion for subsequent layers or coatings.
• Widely used in aerospace, UAVs, automotive, and marine industries for high-quality finishes and reliable bonding.
Usage recommendation
To avoid amine, dust or other contamination of the application surface or cured substrate, do not remove cured peel ply before continuing the lamination or paintwork. For easiest peeling properties do not remove before full cure (the harder the resin system, the easier the peeling)
Best storage recommendations
Best storage recommendations
Store in a cool and dry environment. Recommended temperature range of storage is between 10 – 30 °C and relative humidity between 50 – 75%. Keep in the original packaging until use.
