zylon fabric, zylon fiber hm, zylon fabric twill 300 g
TECHNICAL CHARACTERISTICS
Areal weight: 300 g / m2
Weaving style: Twill 2X2
Width: 1.30 meters
Warp type of yarn: Zylon HM fiber
Weft type of yarn: Zylon HM fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 9.2 ends (threads) / cm
Weft thread count: 9.2 ends (threads) / cm
Weaving style: Twill 2X2
Width: 1.30 meters
Warp type of yarn: Zylon HM fiber
Weft type of yarn: Zylon HM fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 9.2 ends (threads) / cm
Weft thread count: 9.2 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF ZYLON FIBER
Tensile strength (MPa): 5800
Tensile modulus (GPa): 270
Elongation at break (%): 2.5

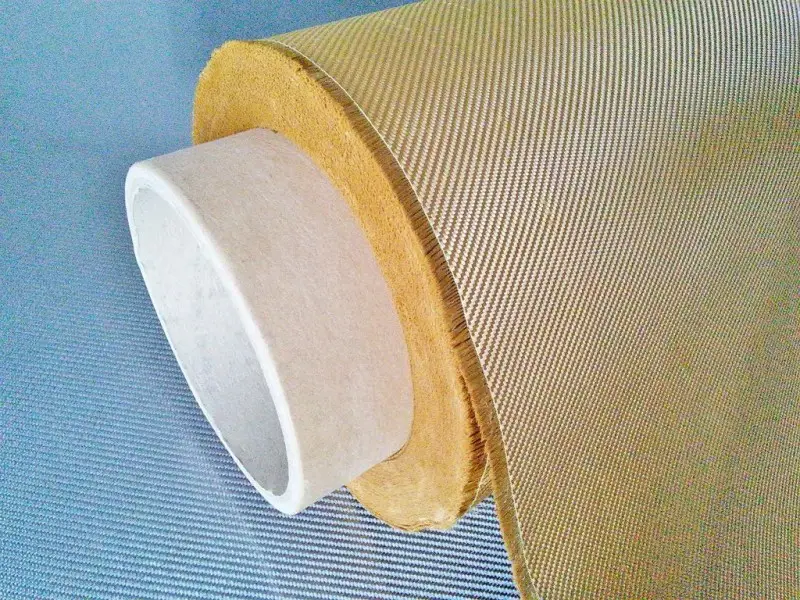

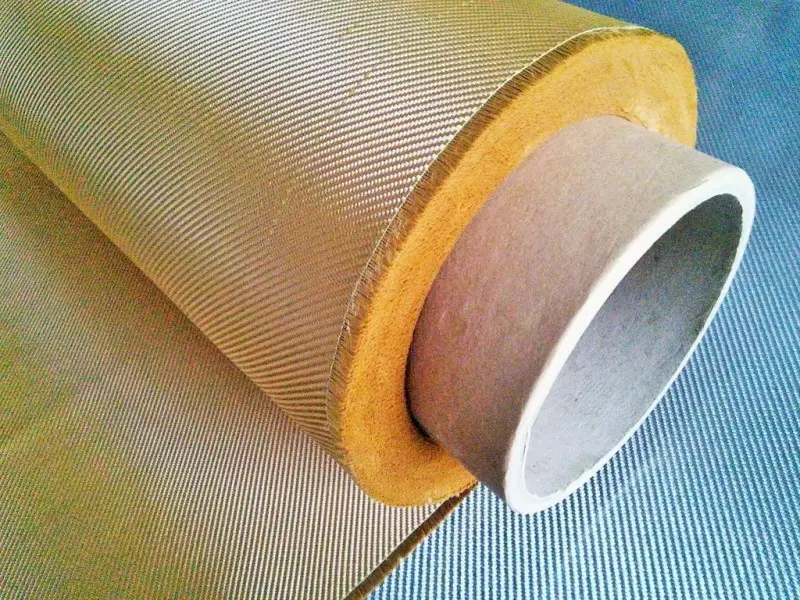

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
