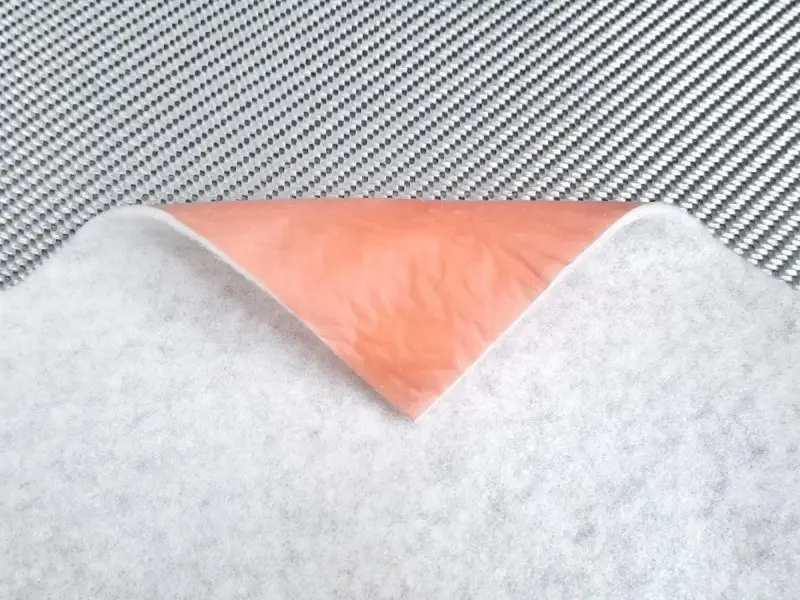

VC0134 is a combination that integrates high-quality breather/bleeder fabric with perforated release film into a single product. This combination simplifies the composite layup process, reducing working time while enhancing laminate consistency. Designed for use in vacuum bagging, and autoclave applications, it ensures efficient air evacuation, even vacuum pressure, and controlled resin distribution. The polyester breather fabric offers good drapability and multidirectional elongation, allowing it to conform to complex mold geometries and surfaces. Meanwhile, the perforated film allows excess resin and trapped air to escape through to the breather, preventing resin voids. Suitable for both ambient or higher temperature processes, it provides clean, consistent performance across a wide range of composite manufacturing methods.
Technical characteristics

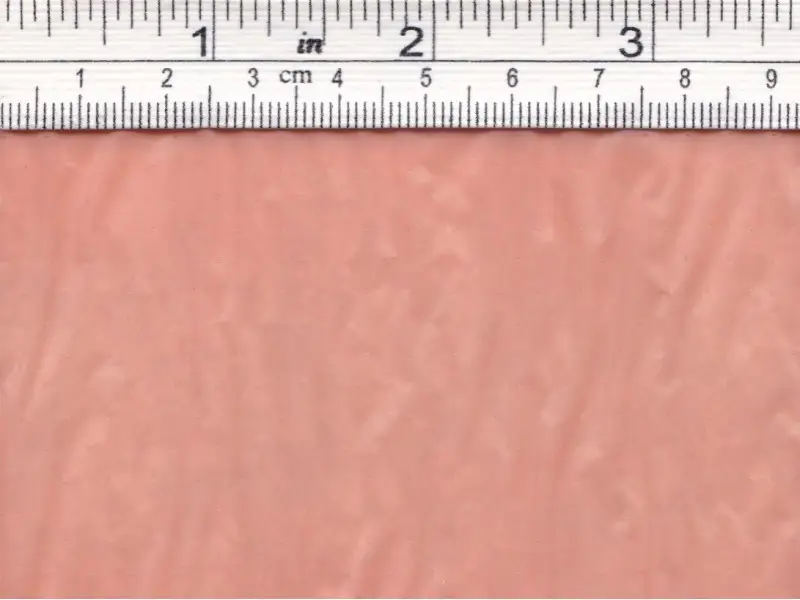

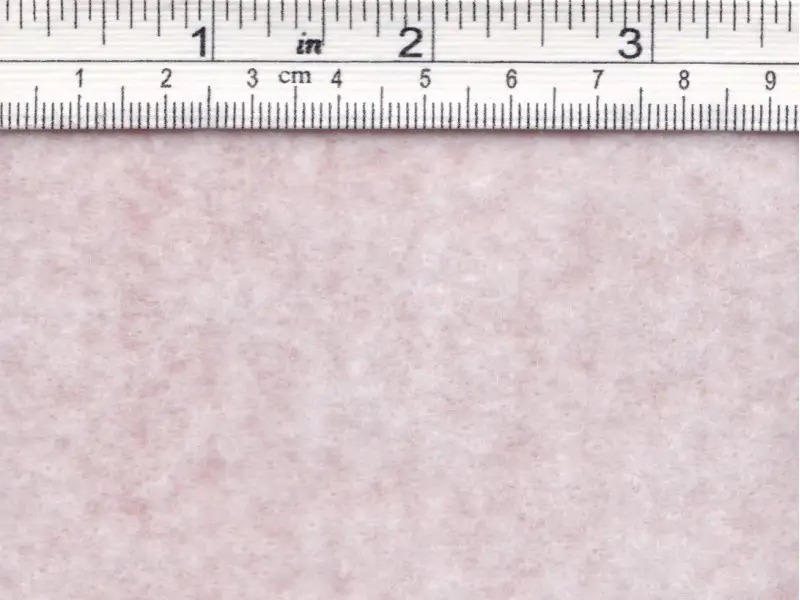

Materials: breather fabric + pink perforated film
Width: 1.50 m
Weight: 152 g / m2
Thickness: 1.63 mm
Max temp: 170 oC
Width: 1.50 m
Weight: 152 g / m2
Thickness: 1.63 mm
Max temp: 170 oC
Features & Benefits
Its bonded construction minimizes material shifting during layup, ensuring uniform results and reducing the risk of defects.
Excellent mechanical properties with a smooth, uniform surface finish, minimizing the need for post-processing.
Exhibits high temperature resistance maintaining structural integrity during elevated temperature curing cycles.
Suitable for use with a wide range of resins, including epoxy, polyester, and vinyl ester, and compatible with most composite materials.
Ideal for vacuum bagging and autoclave processes in aerospace, automotive, marine, UAV, and other high-performance composite industries.
Its bonded construction minimizes material shifting during layup, ensuring uniform results and reducing the risk of defects.
Excellent mechanical properties with a smooth, uniform surface finish, minimizing the need for post-processing.
Exhibits high temperature resistance maintaining structural integrity during elevated temperature curing cycles.
Suitable for use with a wide range of resins, including epoxy, polyester, and vinyl ester, and compatible with most composite materials.
Ideal for vacuum bagging and autoclave processes in aerospace, automotive, marine, UAV, and other high-performance composite industries.
