Flow + Perforated + Peel ply VC0173
$6.06

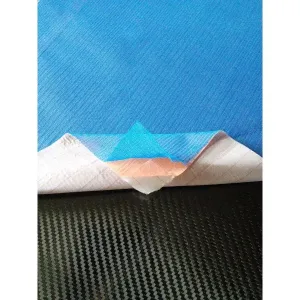

Flow + Perforated + Peel ply VC0173
Product type: vacuum-bagging consumable with the specifications shown below. Key specifications: Width: 1.52 m; Weight: 260 g / m 2; Thickness: 80 µm.
In stock
flow mesh, perforated film for vacuum bagging, peel ply cloth for vacuum bagging, perforated film for infusion, autoclave, composite lamination

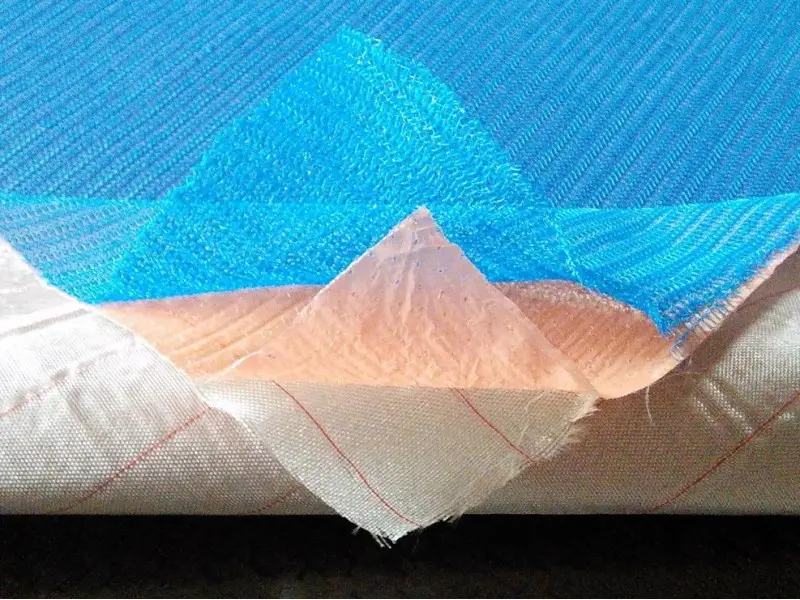

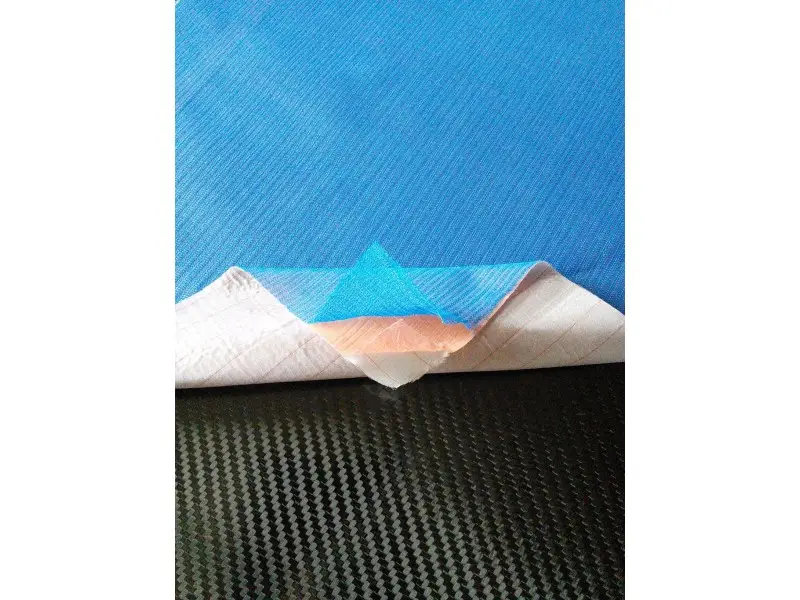

VC0173 is a unique combination that integrates flow fabric, perforated film, and peel ply into a single product. Besides reducing handling time and layup costs, it offers excellent resin distribution with minimal losses and ensures consistent air removal throughout the vacuum-assisted resin infusion process. Its high flexibility makes it ideal for complex mold geometries, while its engineered form can minimize, or even eliminate, the need for sanding or abrading after curing. The high-quality peel ply ensures clean and effortless removal, contributing to a smooth surface finish and optimizing post-processing steps.
Technical characteristics
Materials: blue flow fabric + pink perforated film + peel ply VC009
Width: 1.52 m
Weight: 260 g / m2
Thickness: 80 µm
Max temp: 120 oC (248 oF)
Width: 1.52 m
Weight: 260 g / m2
Thickness: 80 µm
Max temp: 120 oC (248 oF)
| Weight | 260 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
