carbon fabric, carbon fiber 12k, carbon fabric ud
TECHNICAL CHARACTERISTICS
Areal weight: 137 g / m2
Net areal weight in carbon fiber: 80 g / m2
Weaving style: Unidirectional scrim, used for building reinforcement/repair
Width: 1.00 meter
Warp: 12K TR50S carbon fiber (58%) + thermoplastic (16%)
Weft: thermoplastic (26%)
Net areal weight in carbon fiber: 80 g / m2
Weaving style: Unidirectional scrim, used for building reinforcement/repair
Width: 1.00 meter
Warp: 12K TR50S carbon fiber (58%) + thermoplastic (16%)
Weft: thermoplastic (26%)
TYPICAL MECHANICAL PROPERTIES OF 12K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0

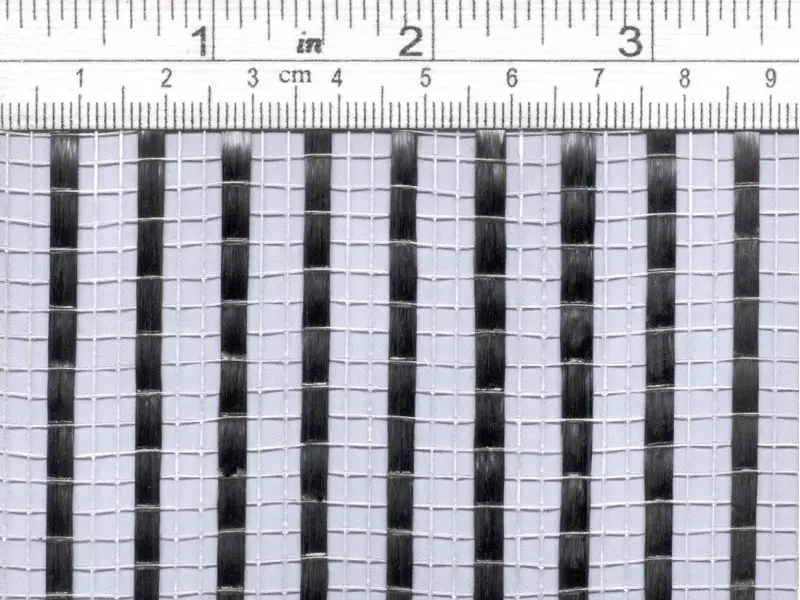

Please click on picture, for a closer view to the fabric's real size.
