TECHNICAL CHARACTERISTICS
Areal weight: 236 g / m2
Net areal weight in carbon fiber: 208 g / m2
Weaving style: 0/90 scrim, used for building reinforcement/repair
Width: 1.00 meter
Warp: 12K TR50S carbon fiber (44%) + thermoplastic (6%)
Weft: 12K TR50S carbon fiber (44%) + thermoplastic (6%)
Net areal weight in carbon fiber: 208 g / m2
Weaving style: 0/90 scrim, used for building reinforcement/repair
Width: 1.00 meter
Warp: 12K TR50S carbon fiber (44%) + thermoplastic (6%)
Weft: 12K TR50S carbon fiber (44%) + thermoplastic (6%)
TYPICAL MECHANICAL PROPERTIES OF 12K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0

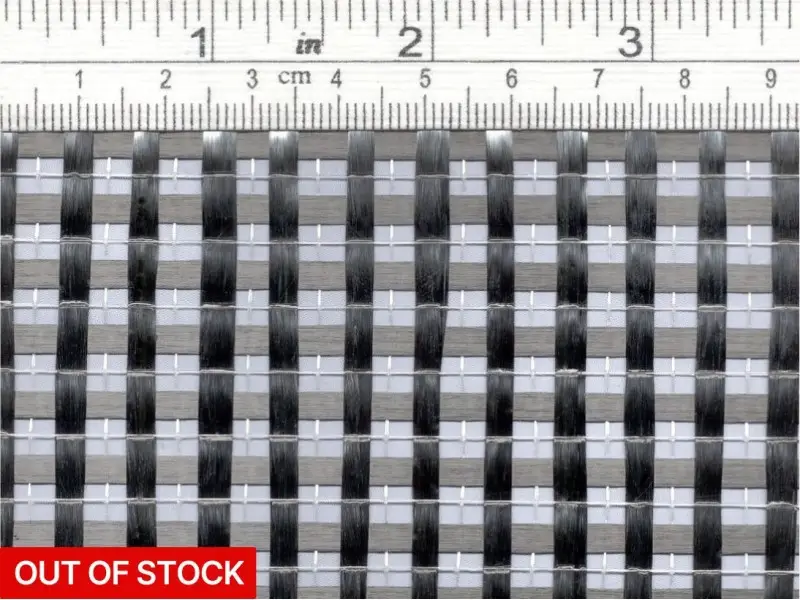

Please click on picture, for a closer view to the fabric's real size.
