carbon fabric, carbon fiber 12K, carbon fabric biaxial
TECHNICAL CHARACTERISTICS
Areal weight: 154 g / m2
Weaving style: Biaxial +45/-45
Width: 1.27 meters
Weaving style: Biaxial +45/-45
Width: 1.27 meters
+45 ply type of yarn: 12K T700 carbon fiber, gauge 1.68
-45 ply type of yarn: 12K T700 carbon fiber, gauge 1.68
+45 ply reinforcement ratio: 48.7% (75 g / m2)
-45 ply reinforcement ratio: 48.7% (75 g / m2)
Stitching fiber: black polyester 33dtex, 2.6% (4 g / m2), length 2 mm, gauge 6.0
-45 ply type of yarn: 12K T700 carbon fiber, gauge 1.68
+45 ply reinforcement ratio: 48.7% (75 g / m2)
-45 ply reinforcement ratio: 48.7% (75 g / m2)
Stitching fiber: black polyester 33dtex, 2.6% (4 g / m2), length 2 mm, gauge 6.0
Stitching type: Pillar
TYPICAL MECHANICAL PROPERTIES OF 12K T700 CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

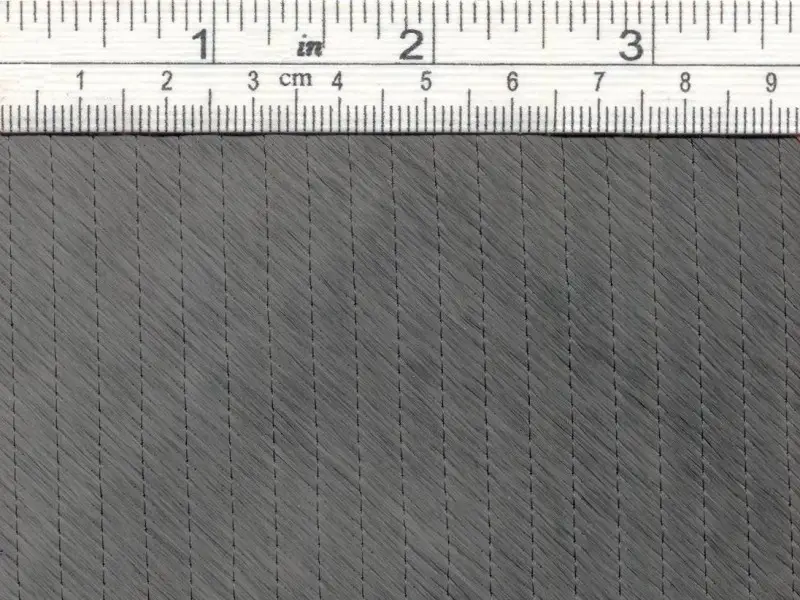

Please click on picture, for a closer view to the fabric's real size.
