carbon fabric, carbon fiber 15k tr50s, spread tow carbon fabric plain 160 g
TECHNICAL CHARACTERISTICS
Areal weight: 160 g / m2
Weaving style: Plain spread tow
Width: 1.00 meter
Weaving style: Plain spread tow
Width: 1.00 meter
Warp type of yarn: 15K TR50S carbon fiber
Weft type of yarn: 15K TR50S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 0.38 ends (threads) / cm
Weft thread count: 0.38 ends (threads) / cm
Weft type of yarn: 15K TR50S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 0.38 ends (threads) / cm
Weft thread count: 0.38 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 15K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

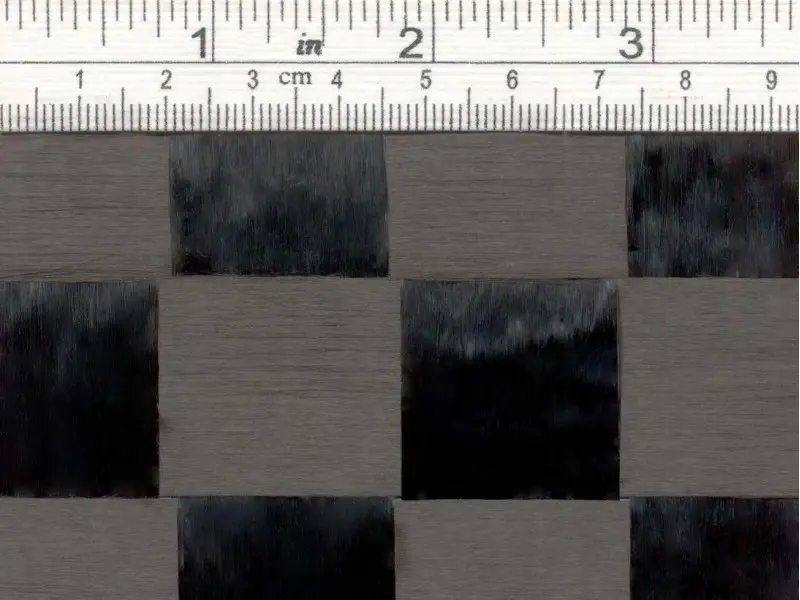

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
