carbon fabric, carbon fiber, carbon fabric biaxial
TECHNICAL CHARACTERISTICS
Areal weight: 205 g / m2
Weaving style: Biaxial +45/-45
Width: 1.27 meters
Weaving style: Biaxial +45/-45
Width: 1.27 meters
+45 ply type of yarn: 12K TR50S carbon fiber
-45 ply type of yarn: 12K TR50S carbon fiber
+45 ply reinforcement ratio: 49% (100 g / m2)
-45 ply reinforcement ratio: 49% (100 g / m2)
Stitching fiber: black polyester 5 tex, 2% (5 g / m2)
-45 ply type of yarn: 12K TR50S carbon fiber
+45 ply reinforcement ratio: 49% (100 g / m2)
-45 ply reinforcement ratio: 49% (100 g / m2)
Stitching fiber: black polyester 5 tex, 2% (5 g / m2)
Stitching type: Catenella – Pillar
TYPICAL MECHANICAL PROPERTIES OF 12K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 235
Elongation at break (%): 1.82

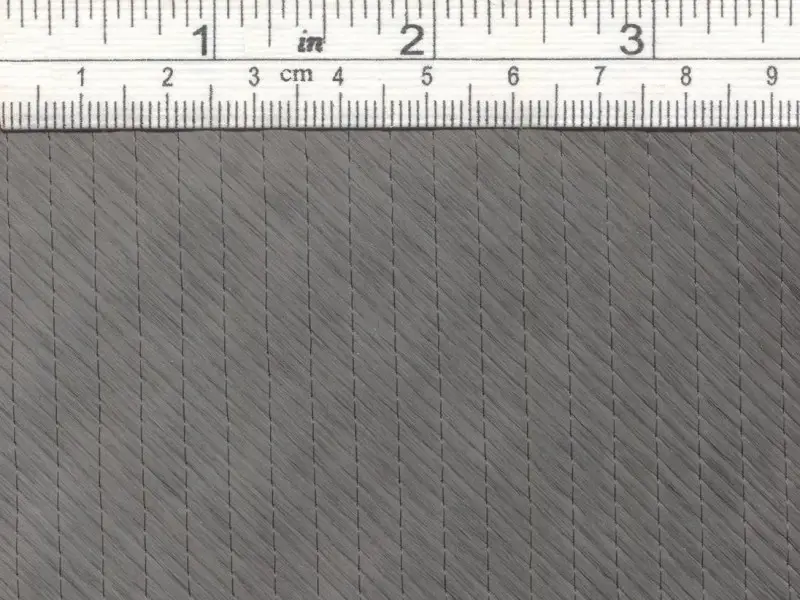

Please click on picture, for a closer view to the fabric's real size.
