carbon fabric, carbon fiber 12k t700, spread tow carbon fabric plain 205 g
TECHNICAL CHARACTERISTICS
Areal weight: 205 g / m2
Weaving style: Plain, spread tow
Width: 1.00 and 1.27 meters
Weaving style: Plain, spread tow
Width: 1.00 and 1.27 meters
Warp type of yarn: 12K T700 carbon fiber
Weft type of yarn: 12K T700 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 1.2 ends (threads) / cm
Weft thread count: 1.2 ends (threads) / cm
Weft type of yarn: 12K T700 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 1.2 ends (threads) / cm
Weft thread count: 1.2 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 12K T700 CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

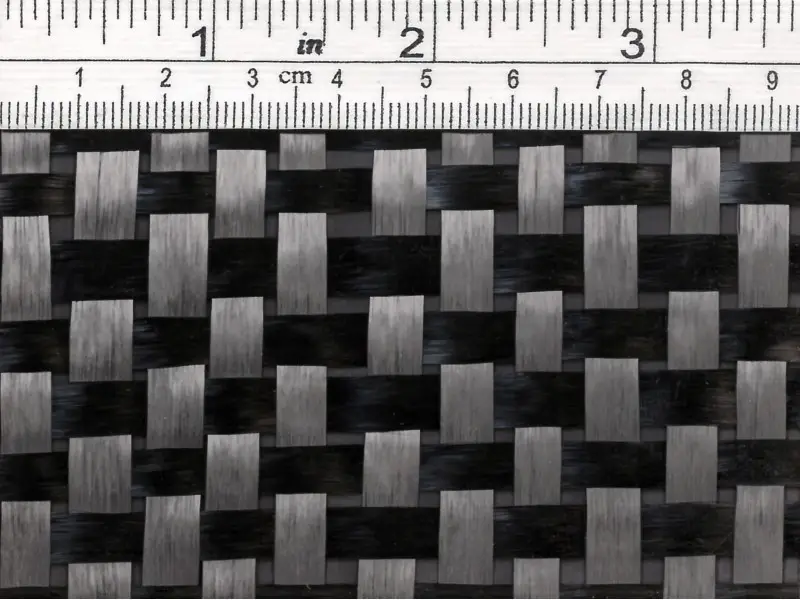

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
