carbon fabric, carbon fiber 3k tr30s, carbon fabric satin 250 g
TECHNICAL CHARACTERISTICS
Areal weight: 250 g / m2
Weaving style: Satin 4H
Width: 1.00 meter
Weaving style: Satin 4H
Width: 1.00 meter
Warp type of yarn: 3K TR30S carbon fiber
Weft type of yarn: 3K TR30S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.2 ends (threads) / cm
Weft thread count: 6.2 ends (threads) / cm
Weft type of yarn: 3K TR30S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.2 ends (threads) / cm
Weft thread count: 6.2 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 3K TR30S CARBON FIBER
Tensile strength (MPa): 4410
Tensile modulus (GPa): 235
Elongation at break (%): 1.9

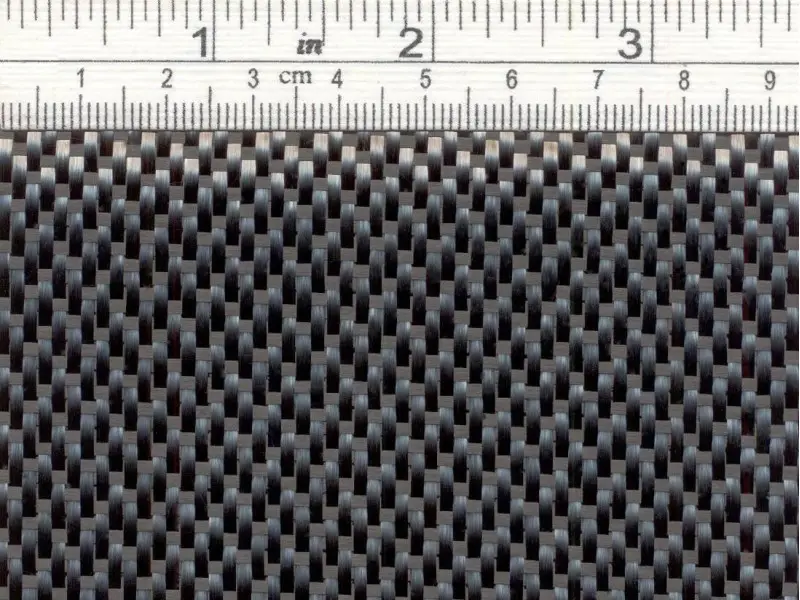

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
