carbon fabric, carbon fibre 6k tr50s, carbon fabric twill 280 g
TECHNICAL CHARACTERISTICS
Areal weight: 280 g / m2
Weaving style: Twill 2X2
Width: 1.00 meter
Weaving style: Twill 2X2
Width: 1.00 meter
Warp type of yarn: 6K TR50S carbon fiber
Weft type of yarn: 6K TR50S carbon fiber
Warp reinforcement ratio (%): 50%
Weft reinforcement ratio (%): 50%
Warp thread count: 3.6 ends (threads) / cm
Weft thread count: 3.6 ends (threads) / cm
Weft type of yarn: 6K TR50S carbon fiber
Warp reinforcement ratio (%): 50%
Weft reinforcement ratio (%): 50%
Warp thread count: 3.6 ends (threads) / cm
Weft thread count: 3.6 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 6K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 235
Elongation at break (%): 2.1

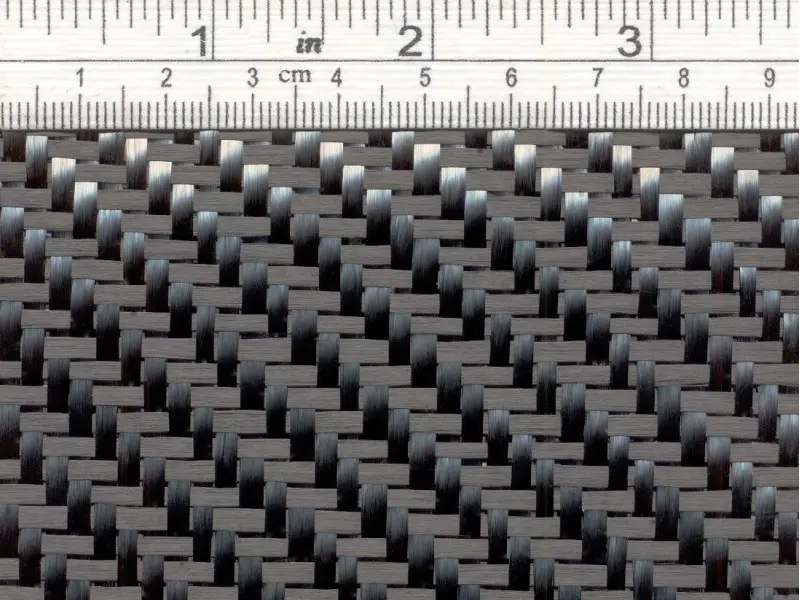

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
