carbon fabric, carbon fibre 3k, carbon fabric satin 285 g
TECHNICAL CHARACTERISTICS
Areal weight: 285 g / m2
Weaving style: Satin 5H
Width: 1.00 meter
Weaving style: Satin 5H
Width: 1.00 meter
Warp type of yarn: 3K HS carbon fiber
Weft type of yarn: 3K HS carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 7 ends (threads) / cm
Weft thread count: 7 ends (threads) / cm
Weft type of yarn: 3K HS carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 7 ends (threads) / cm
Weft thread count: 7 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 3K CARBON FIBER USED
Tensile strength (MPa): 4500
Tensile modulus (GPa): 230-250
Elongation at break (%): 1.8

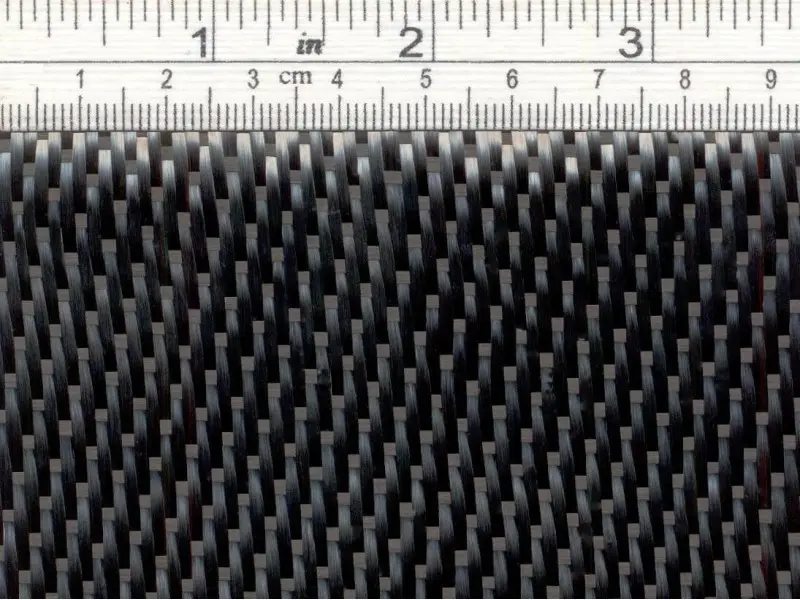

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
