TECHNICAL CHARACTERISTICS
Areal weight: 340 g / m2
Weaving style: Biaxial +45/-45
Width: 1.27, 2.54 meters
Weaving style: Biaxial +45/-45
Width: 1.27, 2.54 meters
+45 ply type of yarn: 12K T700 carbon fiber, gauge 3.30
-45 ply type of yarn: 12K T700 carbon fiber, gauge 3.30
+45 ply reinforcement ratio: 49.5% (168.5 g / m2)
-45 ply reinforcement ratio: 49.5% (168.5 g / m2)
Stitching fiber: polyester 78dtex, 1% (3 g / m2), length 2.54 mm, gauge 6.0
-45 ply type of yarn: 12K T700 carbon fiber, gauge 3.30
+45 ply reinforcement ratio: 49.5% (168.5 g / m2)
-45 ply reinforcement ratio: 49.5% (168.5 g / m2)
Stitching fiber: polyester 78dtex, 1% (3 g / m2), length 2.54 mm, gauge 6.0
Stitching type: Pillar
TYPICAL MECHANICAL PROPERTIES OF 12K T700 CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

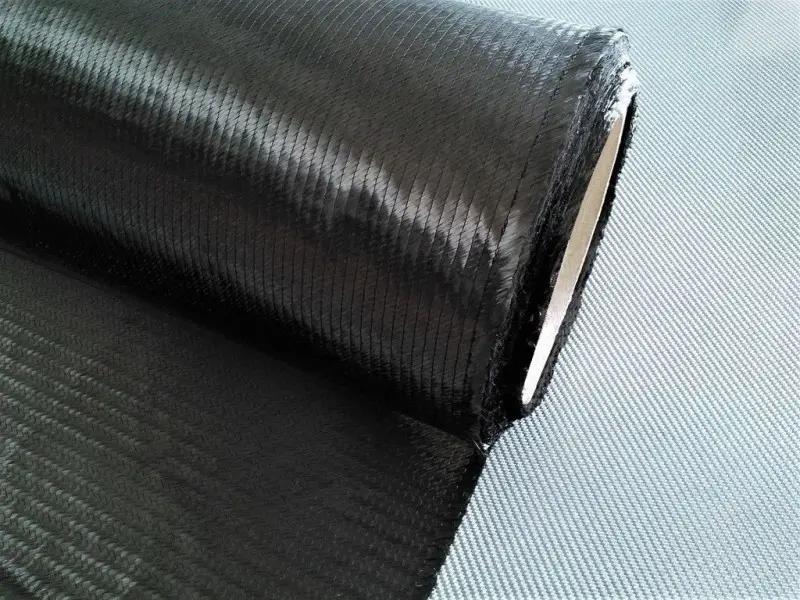

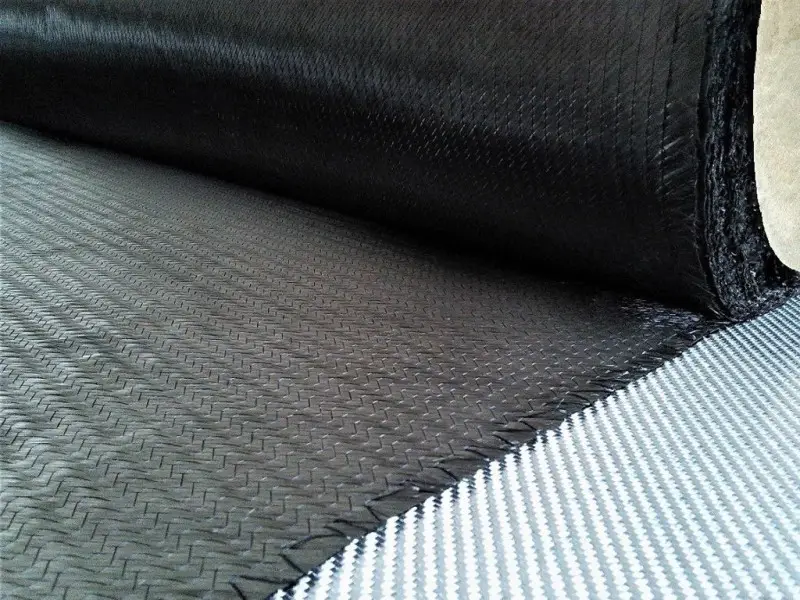

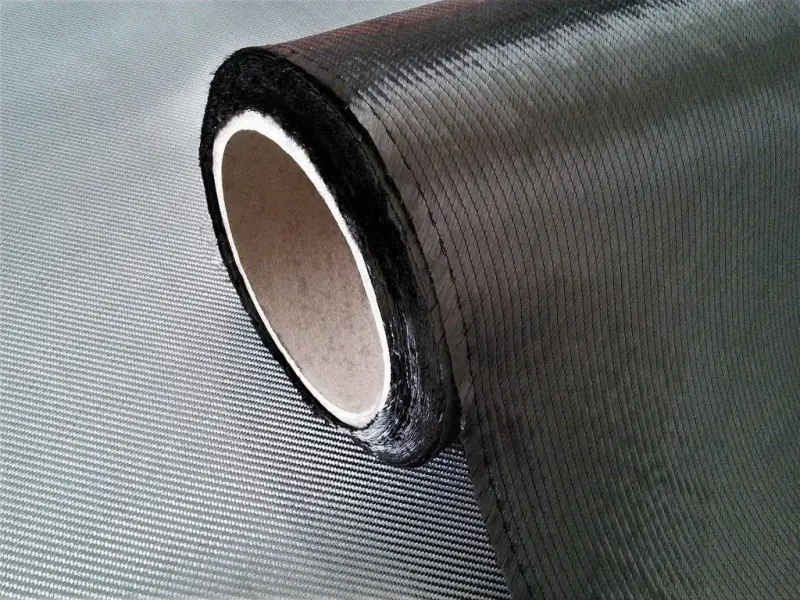

Please click on picture, for a closer view to the fabric's real size.
