carbon fabric, carbon fiber 12k tr30s, carbon fabric twill 380 g
TECHNICAL CHARACTERISTICS
Areal weight: 380 g / m2
Weaving style: Twill 2X2
Width: 1.00 meters
Weaving style: Twill 2X2
Width: 1.00 meters
Warp type of yarn: 12K TR30S carbon fiber
Weft type of yarn: 12K TR30S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 2.4 ends (threads) / cm
Weft thread count: 2.4 ends (threads) / cm
Weft type of yarn: 12K TR30S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 2.4 ends (threads) / cm
Weft thread count: 2.4 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 12K TR30S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 235
Elongation at break (%): 2.1

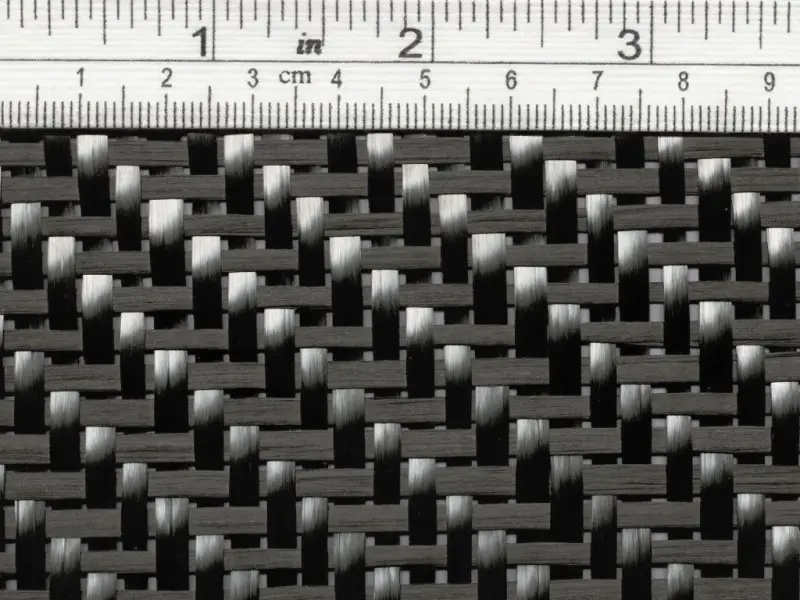

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
