carbon fabric, carbon fibre 12k t700, carbon fabric twill 416 g
Weaving style: Twill 2×2
Width: 0.67 and 1.00 meters
Weft type of yarn: 12K T700 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 2.6 ends (threads) / cm
Weft thread count: 2.6 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 12K T700 CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0

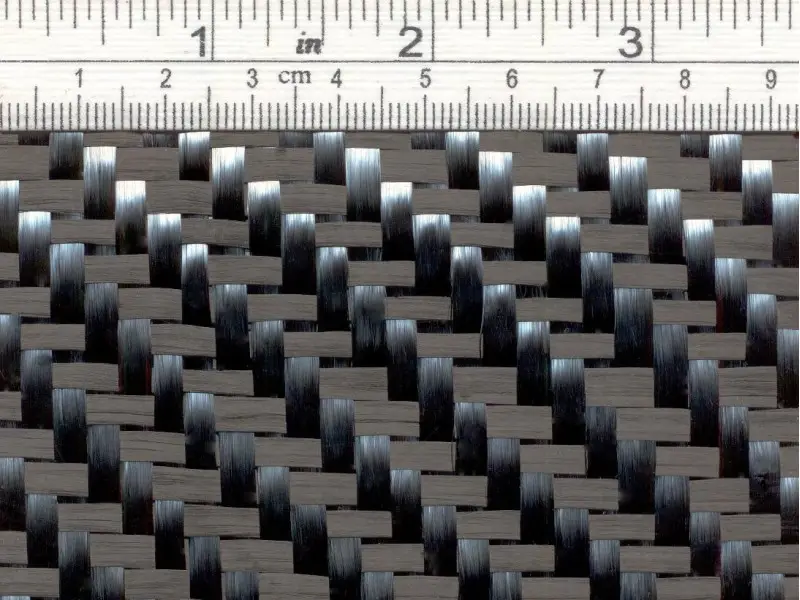

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
DISCLAIMER
All information herein is given for guidance and general information purposes only, represents typical properties, and should not be used for specification limits purposes or basis for design. Fibremax Ltd reserves the right to make modifications on fabrics, change yarns, specifications, and all information given herein, without notice. It is only on written certificates and agreements that we provide our customers with warrants for the quality and/or advise for the suitability of products for particular uses. Data sheets and certificates of conformity are promptly provided upon request with roll serial number, for all 100 lm rolls.
