carbon fabric, carbon fiber, carbon fabric biaxial
TECHNICAL CHARACTERISTICS
Areal weight: 425 g / m2
Weaving style: Biaxial 0/90
Width: 1.27 meters
0 ply type of yarn: 12K T700 carbon fiber, gauge 6.00
90 ply type of yarn: 12K T700 carbon fiber, gauge 6.00
0 ply reinforcement ratio: 49.5% (212.50 g / m2)
90 ply reinforcement ratio: 49.5% (212.50 g / m2)
Weaving style: Biaxial 0/90
Width: 1.27 meters
0 ply type of yarn: 12K T700 carbon fiber, gauge 6.00
90 ply type of yarn: 12K T700 carbon fiber, gauge 6.00
0 ply reinforcement ratio: 49.5% (212.50 g / m2)
90 ply reinforcement ratio: 49.5% (212.50 g / m2)
Stitching fiber: polyester 78dtex, 1% (7 g / m2), length 2.50 mm, gauge 6.00
Stitching type: Pillar
TYPICAL MECHANICAL PROPERTIES OF12K T700 CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

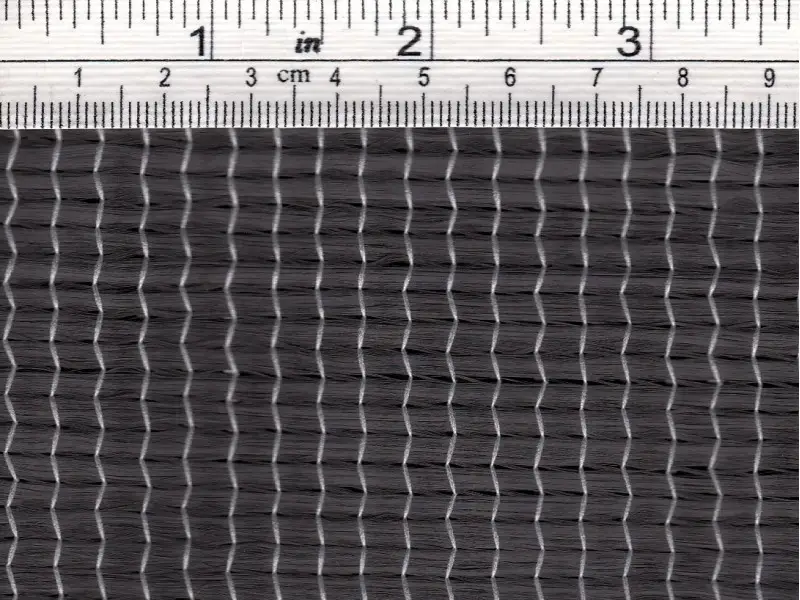

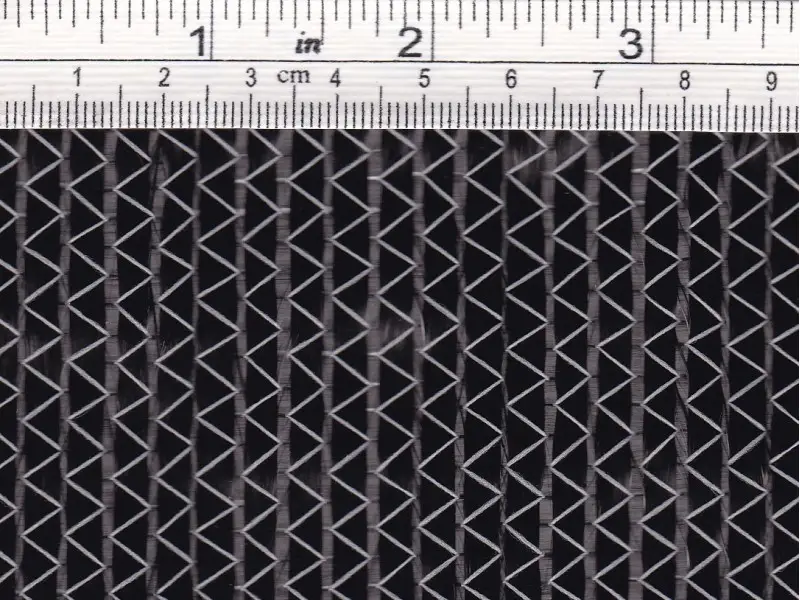

Please click on picture, for a closer view to the fabric's real size.
