carbon fabric, carbon fiber, carbon fabric triaxial
TECHNICAL CHARACTERISTICS
Areal weight: 458 g / m2
Weaving style: Triaxial +45/0/-45
Width: 1.27 meters
+45 ply type of yarn: 12K T700 50C carbon fiber, gauge 3.33
0 ply type of yarn: 12K T700 50C carbon fiber, gauge 5.00
Weaving style: Triaxial +45/0/-45
Width: 1.27 meters
+45 ply type of yarn: 12K T700 50C carbon fiber, gauge 3.33
0 ply type of yarn: 12K T700 50C carbon fiber, gauge 5.00
-45 ply type of yarn: 12K T700 50C carbon fiber, gauge 3.33
+45 ply reinforcement ratio: 32.17% (147 g / m2)
0 ply reinforcement ratio: 34.13% (157 g / m2)
+45 ply reinforcement ratio: 32.17% (147 g / m2)
0 ply reinforcement ratio: 34.13% (157 g / m2)
-45 ply reinforcement ratio: 32.17% (147 g / m2)
Stitching fiber: polyester, 1.5% (7 g / m2), length 2.50 mm, gauge 6.0
Stitching fiber: polyester, 1.5% (7 g / m2), length 2.50 mm, gauge 6.0
Stitching type: 1/2 Pillar Tricot
TYPICAL MECHANICAL PROPERTIES OF 12K T700 50C CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

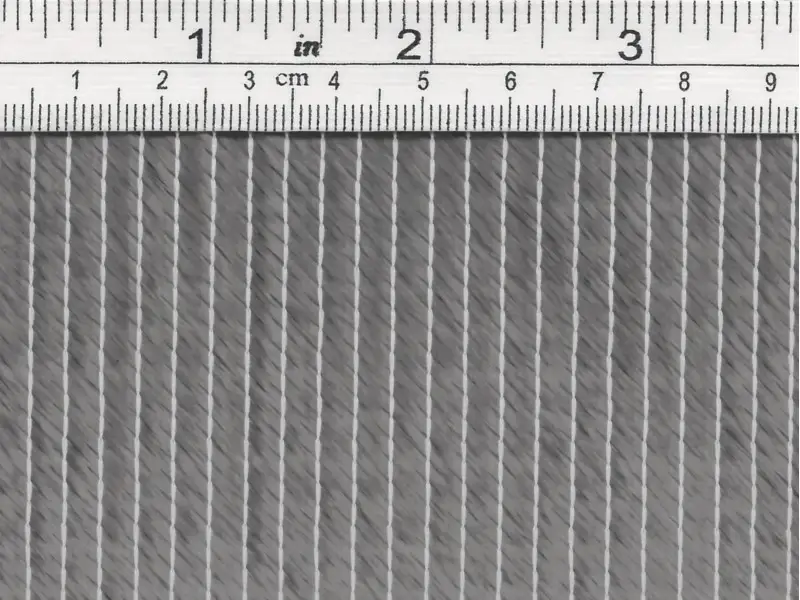

Please click on picture, for a closer view to the fabric's real size.
