carbon fabric, carbon fiber 24k t800sc, carbon fabric twill 520 g
TECHNICAL CHARACTERISTICS
Areal weight: 520 g / m2
Weaving style: Twill 2X2
Width: 1.25 meter
Weaving style: Twill 2X2
Width: 1.25 meter
Warp type of yarn: 24K T800SC carbon fiber
Weft type of yarn: 24K T800SC carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 2.5 ends (threads) / cm
Weft thread count: 2.5 ends (threads) / cm
Weft type of yarn: 24K T800SC carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 2.5 ends (threads) / cm
Weft thread count: 2.5 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 24K T800SC CARBON FIBER
Tensile strength (MPa): 5490
Tensile modulus (GPa): 294
Elongation at break (%): 1.9

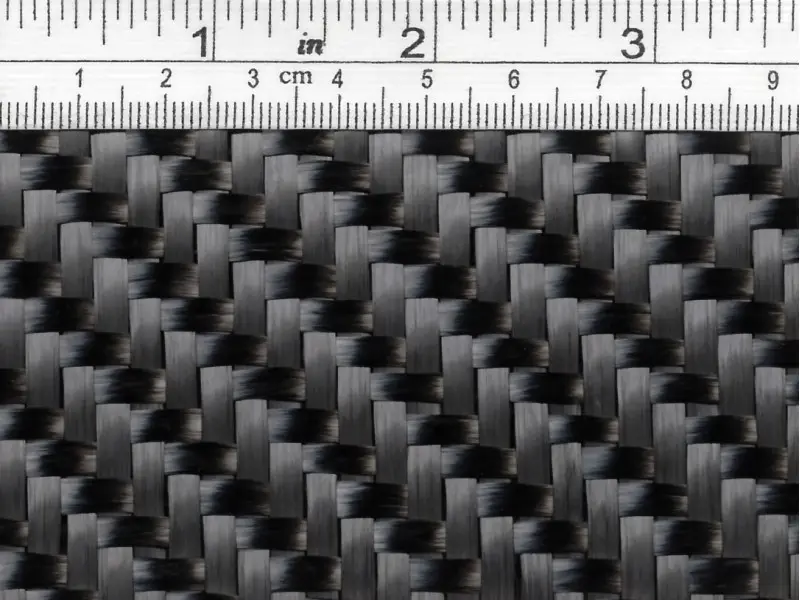

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
