carbon fabric, carbon fiber 24k tc620sc, carbon fabric twill 600 g
TECHNICAL CHARACTERISTICS
Areal weight: 600 g / m2
Weaving style: Twill 2×2
Width: 1.25 meters
Weaving style: Twill 2×2
Width: 1.25 meters
Warp type of yarn: 24K TC620SC carbon fiber
Weft type of yarn: 24K TC620SC carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 1.8 ends (threads) / cm
Weft thread count: 1.8 ends (threads) / cm
Weft type of yarn: 24K TC620SC carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 1.8 ends (threads) / cm
Weft thread count: 1.8 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 24K TC620SC CARBON FIBER
Tensile strength (MPa): 4300
Tensile modulus (GPa): 235
Elongation at break (%): 1.8

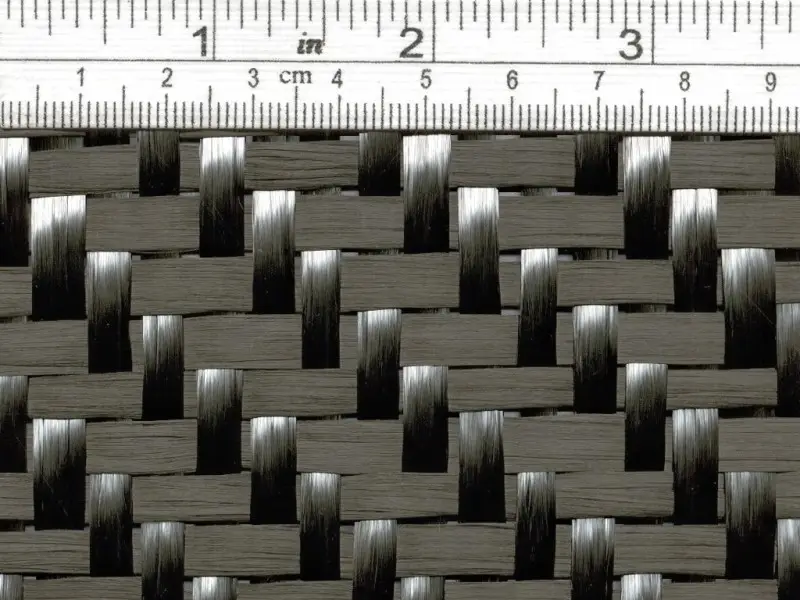

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
