carbon fabric, carbon fiber, carbon fabric biaxial
TECHNICAL CHARACTERISTICS
Areal weight: 607 g / m2
Weaving style: Biaxial +45/-45
Width: 1.27 meters
+45 ply type of yarn: 50K TRW40 carbon fiber
-45 ply type of yarn: 50K TRW40 carbon fiber
+45 ply reinforcement ratio: 49.4% (300 g / m2)
-45 ply reinforcement ratio: 49.4% (300 g / m2)
Weaving style: Biaxial +45/-45
Width: 1.27 meters
+45 ply type of yarn: 50K TRW40 carbon fiber
-45 ply type of yarn: 50K TRW40 carbon fiber
+45 ply reinforcement ratio: 49.4% (300 g / m2)
-45 ply reinforcement ratio: 49.4% (300 g / m2)
Stitching fiber: polyester 78dtex, 1% (7 g / m2)
Stitching type: Pillar
TYPICAL MECHANICAL PROPERTIES OF 50K TRW40 CARBON FIBER
Tensile strength (MPa): 4460
Tensile modulus (GPa): 240
Elongation at break (%): 1.8
Tensile strength (MPa): 4460
Tensile modulus (GPa): 240
Elongation at break (%): 1.8

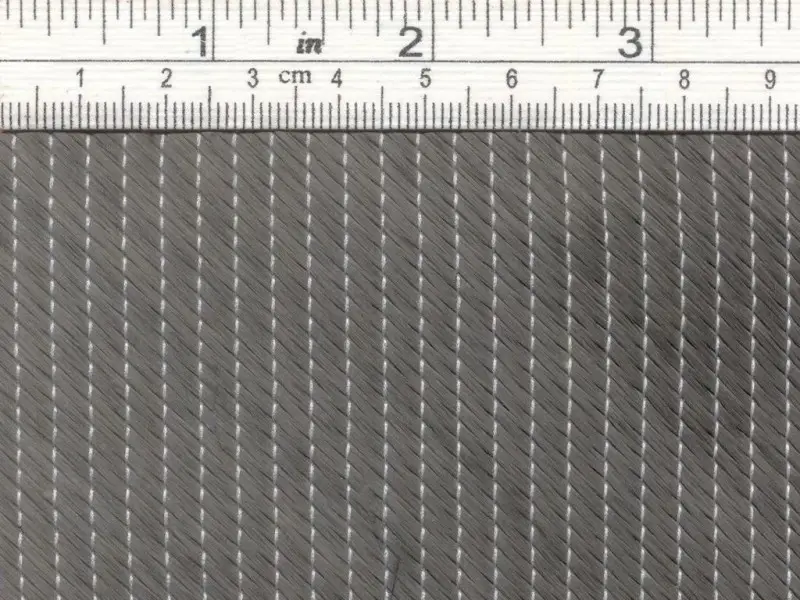

Please click on picture, for a closer view to the fabric's real size.
