TECHNICAL CHARACTERISTICS
Areal weight: 617 g / m2
Weaving style: Quadraxial +45/-45/0/90
Width: 1.27 meters
+45 ply: 12K T700 carbon fiber, 24.5% (148 g / m2), gauge 3.33
-45 ply: 12K T700 carbon fiber, 24.5% (148 g / m2), gauge 3.33
0 ply: 12K T700 carbon fiber, 25.5% (157 g / m2), gauge 5.00
90 ply: 12K T700 carbon fiber, 25.5% (157 g / m2), gauge 5.00
Stitching fiber: polyester 78dtex, 1% (7 g / m2), length 2.50 mm, gauge 6.0
Weaving style: Quadraxial +45/-45/0/90
Width: 1.27 meters
+45 ply: 12K T700 carbon fiber, 24.5% (148 g / m2), gauge 3.33
-45 ply: 12K T700 carbon fiber, 24.5% (148 g / m2), gauge 3.33
0 ply: 12K T700 carbon fiber, 25.5% (157 g / m2), gauge 5.00
90 ply: 12K T700 carbon fiber, 25.5% (157 g / m2), gauge 5.00
Stitching fiber: polyester 78dtex, 1% (7 g / m2), length 2.50 mm, gauge 6.0
Stitching type: Full pillar tricot
TYPICAL MECHANICAL PROPERTIES OF 12Κ Τ700 CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

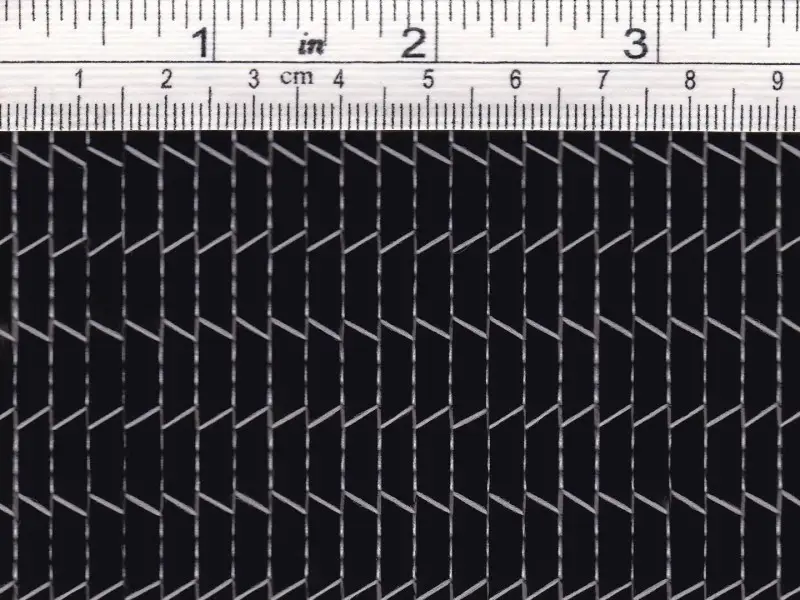

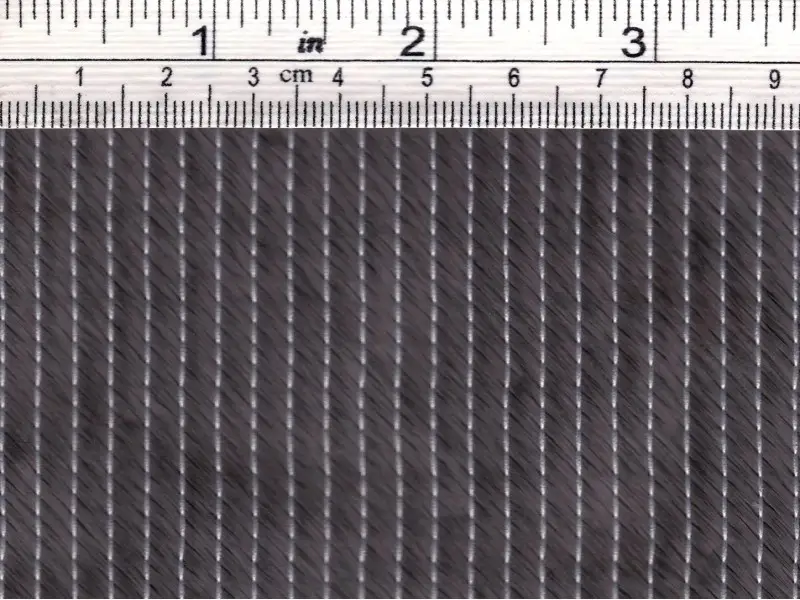

Please click on picture, for a closer view to the fabric's real size.
