TECHNICAL CHARACTERISTICS
Areal weight: 600 g / m2
Weaving style: Twill 2Χ2
Width: 1.27 meter
Weaving style: Twill 2Χ2
Width: 1.27 meter
Warp type of yarn: 12K HS carbon fiber
Weft type of yarn: 12K HS carbon fiber
Warp reinforcement ratio: 54%
Weft reinforcement ratio: 46%
Warp thread count: 4.0 ends (threads) / cm
Weft thread count: 3.4 ends (threads) / cm
Weft type of yarn: 12K HS carbon fiber
Warp reinforcement ratio: 54%
Weft reinforcement ratio: 46%
Warp thread count: 4.0 ends (threads) / cm
Weft thread count: 3.4 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 12K CARBON FIBER USED
Tensile strength (MPa): 4800
Tensile modulus (GPa): 220
Elongation at break (%): 2.0

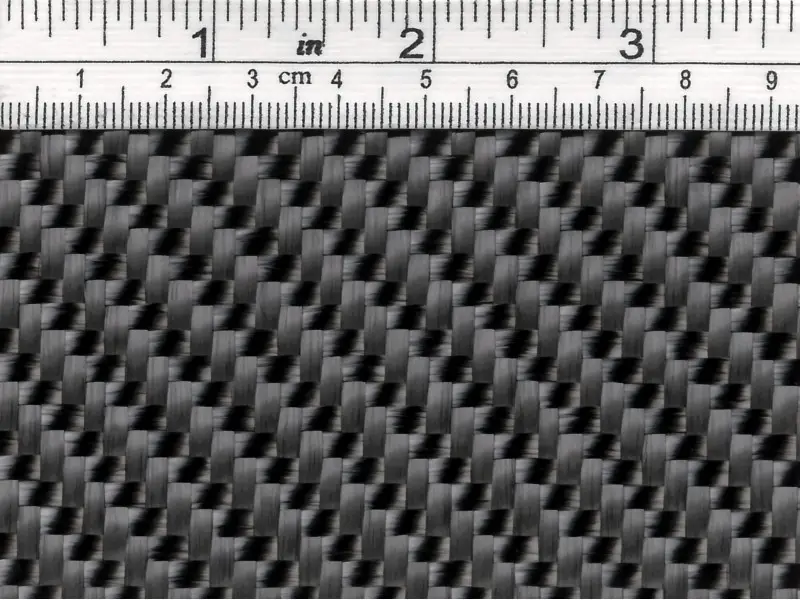

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
