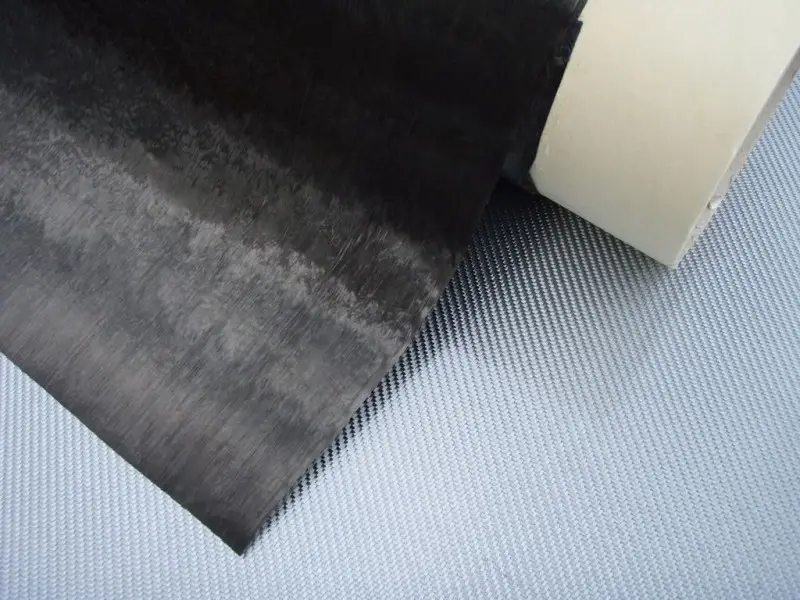

carbon fabric, carbon fiber tr50s, carbon fabric unidirectional
TECHNICAL CHARACTERISTICS
Areal weight: 80 g / m2
Weaving style: Unidirectional, spread tow, with X-ply inbetween 2 very thin layers of carbon
Width: 1.00 meter
Warp: 15Κ TR50S carbon fiber 100%
Weft: No weft (warp fibers are held in place by chemical binder and very thin, non prominent X-ply net (4 g / m2))
Weaving style: Unidirectional, spread tow, with X-ply inbetween 2 very thin layers of carbon
Width: 1.00 meter
Warp: 15Κ TR50S carbon fiber 100%
Weft: No weft (warp fibers are held in place by chemical binder and very thin, non prominent X-ply net (4 g / m2))
TYPICAL MECHANICAL PROPERTIES OF 15K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0
