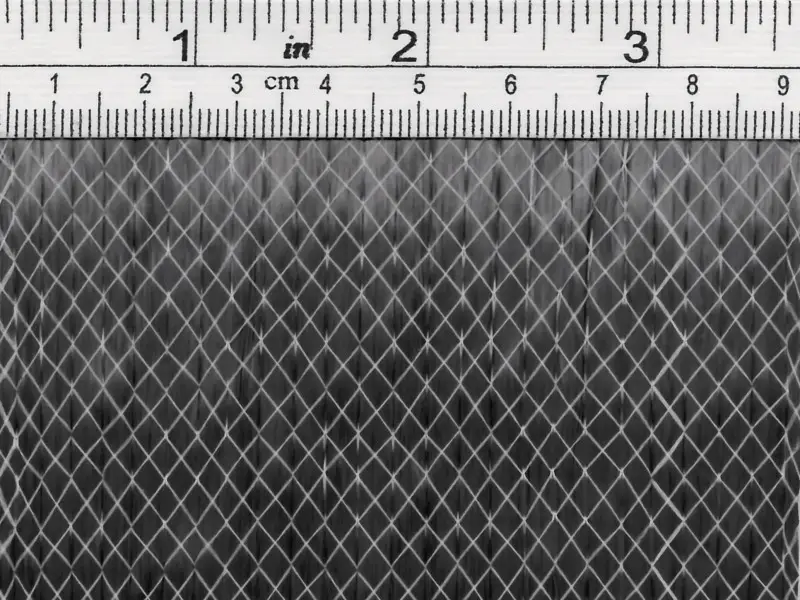

Carbon fiber tape roll width 10 cm TC450U10
Carbon fiber tape roll width 10 cm TC450U10 - Image 2
Carbon fiber tape roll width 10 cm TC450U10
Carbon fiber tape roll width 10 cm TC450U10
$30.00 Add to cart
Carbon fiber tape width 10 cm TC325U10 Carbon fiber tape width 10 cm TC325U10 $3.10
Carbon fiber tape width 10 cm TC200P10 Carbon fiber tape width 10 cm TC200P10 $3.31

Carbon fiber tape roll width 10 cm TC450U10

$30.00

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Carbon fiber tape roll width 10 cm TC450U10
Carbon fiber tape roll width 10 cm TC450U10
$30.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

carbon fabric tape 10 cm, carbon fiber 12k, carbon fabric unidirectional 450 g

Roll length: 40 lm
Roll m2: 4 m2
Roll price: 30.00 EUR / 40 lm roll
Price / lm.: 0.75 EUR
Price / m2: 7.75 EUR

TECHNICAL CHARACTERISTICS
Width: 10 cm
Areal weight: 456 g / m2
Weaving style: Unidirectional, stitched
0 ply: 12K carbon fiber 96.7% (441 g / m2)
+45 ply: E – Glass 0.87% (4 g / m2)
90 ply: E – Glass 0.65% (3 g / m2)
-45 ply: E – Glass 0.87% (4 g / m2)
Stitching fiber: texturized polyester 35dtex, 0.43% (2 g / m2), double tricot
2nd Stitching fiber: texturized polyester 35dtex, 0.43% (2 g / m2), double tricot

MECHANICAL PROPERTIES OF 12K CARBON FIBER USED
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

DISCLAIMER
All information herein is given for guidance and general information purposes only, represents typical properties, and should not be used for specification limits purposes or basis for design. Fibremax Ltd reserves the right to make modifications on fabrics, change yarns, specifications, and all information given herein, without notice. It is only on written certificates and agreements that we provide our customers with warrants for the quality and/or advise for the suitability of products for particular uses. Data sheets and certificates of conformity are promptly provided upon request with roll serial number, for all 100 lm rolls.
