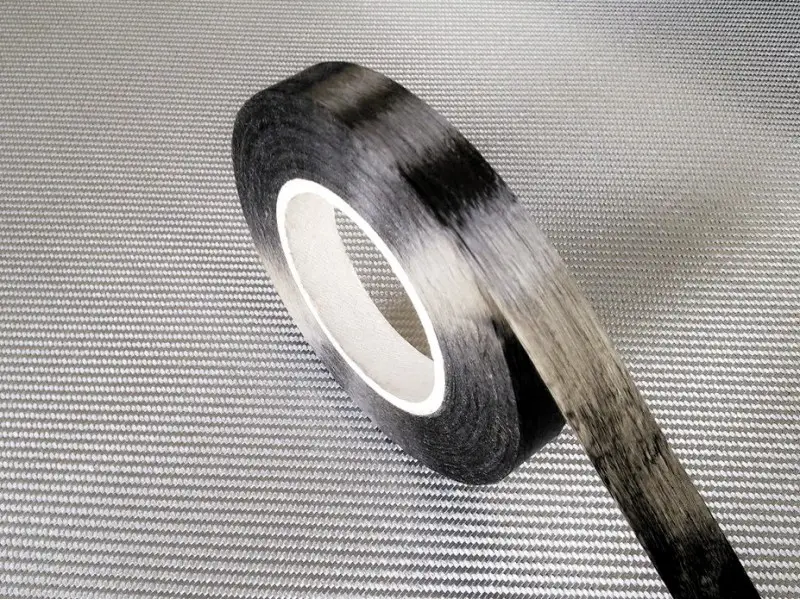

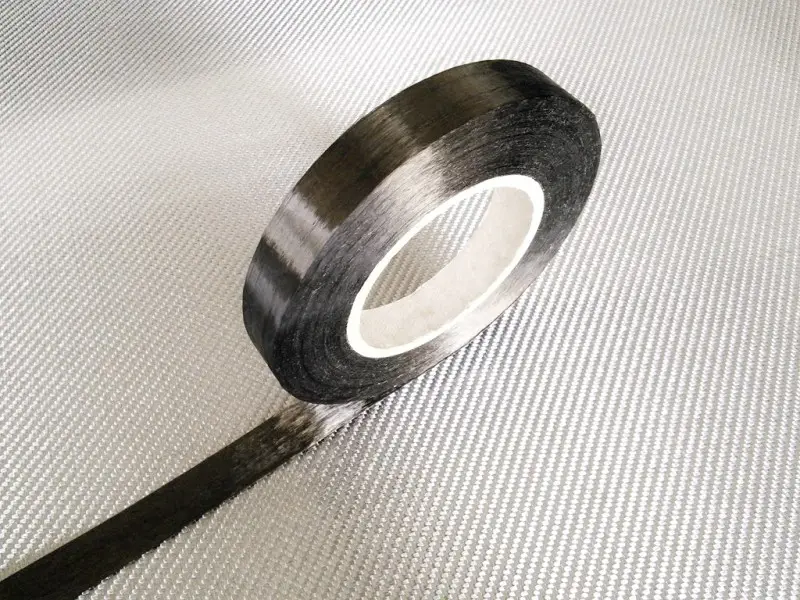

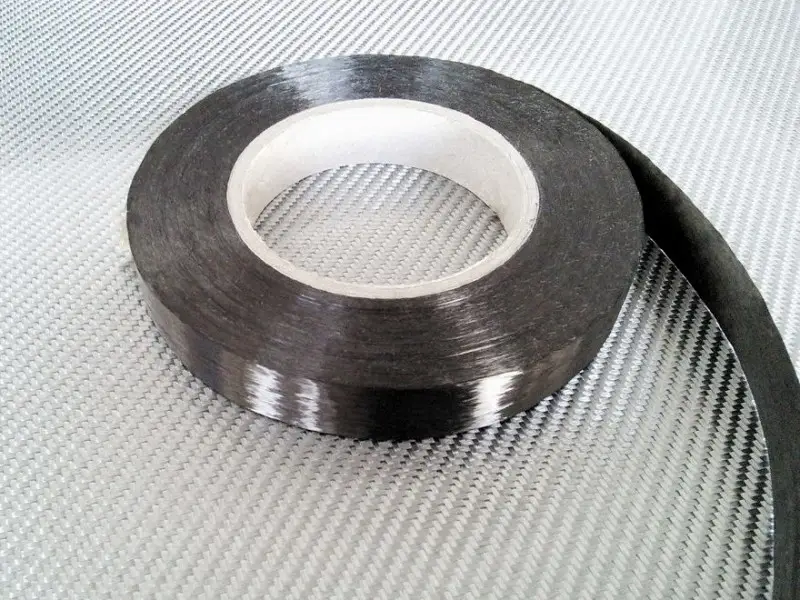

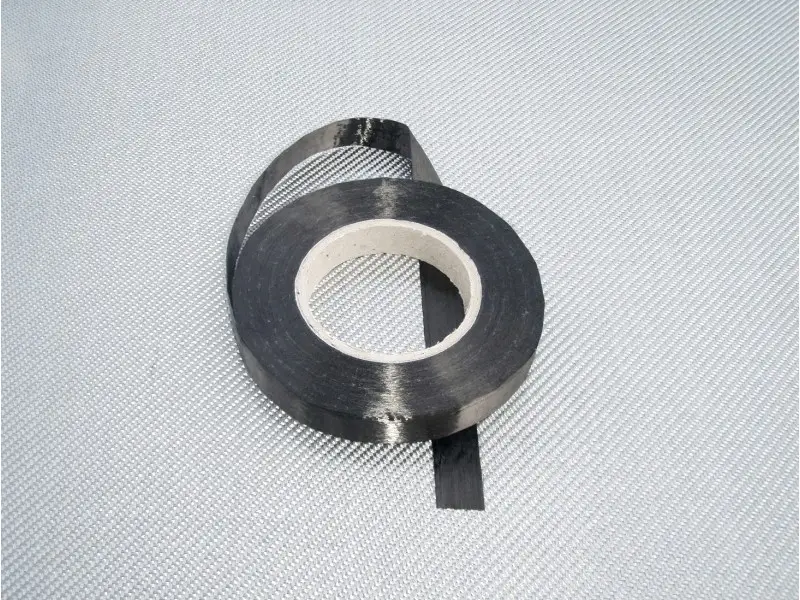

carbon fabric tape 2 cm, carbon fiber 15k tr50s, carbon fabric unidirectional 80 g
Roll length: 100 lm
Roll m2 : 2 m2
Roll price: 22.63 EUR / 100 lm roll
Price / lm. : 0.23 EUR
Price / m2 : 11.32 EUR
Roll price: 22.63 EUR / 100 lm roll
Price / lm. : 0.23 EUR
Price / m2 : 11.32 EUR
TECHNICAL CHARACTERISTICS
Width: 2 cm
Weaving style: Unidirectional, spread tow
Areal weight: 80 g / m2
Warp: 15Κ TR50S carbon fiber 100%
Weft: No weft (warp fibers are held in place by chemical binder and very thin, non prominent X-ply net (4 g / m2))
Width: 2 cm
Weaving style: Unidirectional, spread tow
Areal weight: 80 g / m2
Warp: 15Κ TR50S carbon fiber 100%
Weft: No weft (warp fibers are held in place by chemical binder and very thin, non prominent X-ply net (4 g / m2))
MECHANICAL PROPERTIES OF 15K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0
