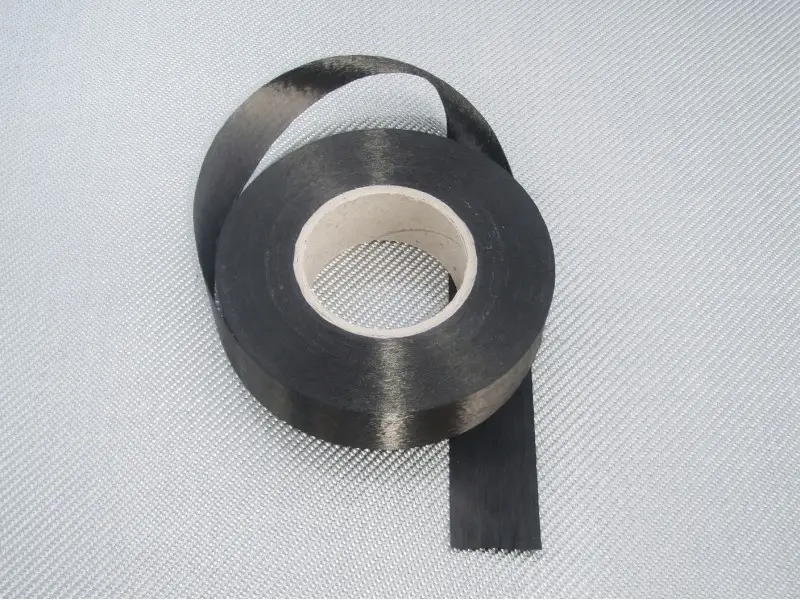

Carbon fiber tape roll width 4 cm TC80U04

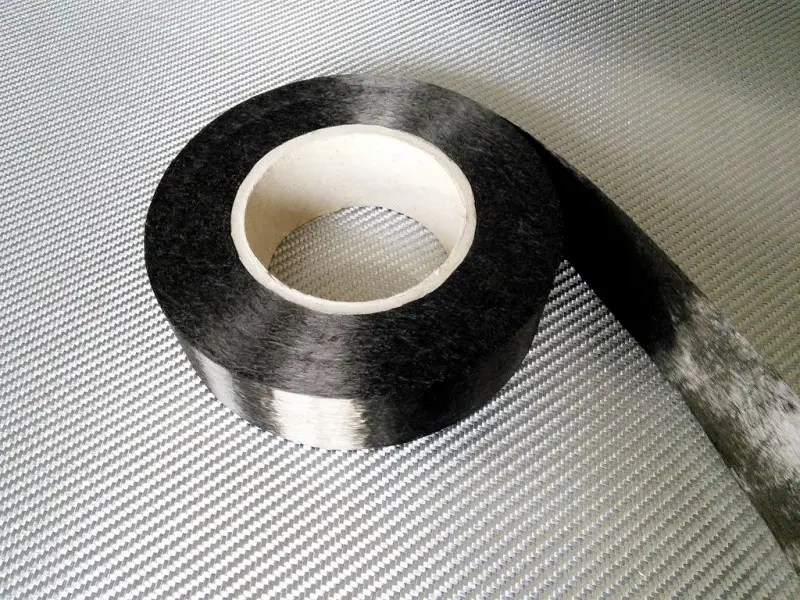

Carbon fiber tape roll width 4 cm TC80U04 - Image 2
Carbon fiber tape roll width 4 cm TC80U04 - Image 3
Carbon fiber tape roll width 4 cm TC80U04 - Image 4
Carbon fiber tape roll width 4 cm TC80U04
Carbon fiber tape roll width 4 cm TC80U04
$42.60 Add to cart
Carbon fiber tape roll width 3 cm TC80U03 Carbon fiber tape roll width 3 cm TC80U03 $31.94
Carbon fiber tape roll width 5 cm TC80U05 Carbon fiber tape roll width 5 cm TC80U05 $42.60

Carbon fiber tape roll width 4 cm TC80U04

$42.60

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Carbon fiber tape roll width 4 cm TC80U04
Carbon fiber tape roll width 4 cm TC80U04
$42.60

[wpforms id=”1190″ title=”true” description=”Request a call back”]

carbon fabric tape 4 cm, carbon fibre 15k tr50s, carbon fabric unidirectional 80 g

Roll length: 100 lm
Roll m2: 4 m2
Roll price: 42.60 EUR / 100 lm roll
Price / lm: 0.43 EUR
Price / m2: 10.65 EUR

TECHNICAL CHARACTERISTICS
Width: 4 cm
Weaving style: Unidirectional, spread tow
Areal weight: 80 g / m2
Warp: 15K TR50S carbon fiber 100%
Weft: No weft (warp fibers are held in place by chemical binder and very thin, non prominent X-ply net (4 g / m2))

MECHANICAL PROPERTIES OF 15K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0
