carbon fabric tape 5 cm, carbon fibre 12k t700s 50c, carbon fabric ud 400 g
Roll length: 100 lm
Roll m2: 5.00 m2
Roll price: 66.00 EUR / 100 lm roll
Roll price: 66.00 EUR / 100 lm roll
Price / lm.: 0.66 EUR
Price / m2: 13.20 EUR
Price / m2: 13.20 EUR
TECHNICAL CHARACTERISTICS
Width: 5 cm
Areal weight: 400 g / m2
Weaving style: Unidirectional, woven
Warp type of yarn: 12K T700S 50C carbon fiber
Weft type of yarn: Glass thermoplastic
Warp reinforcement ratio: 99%
Weft reinforcement ratio: 1%
Warp thread count: 5 ends (threads) / cm
Weft thread count: 1 end (threads) / cm
Areal weight: 400 g / m2
Weaving style: Unidirectional, woven
Warp type of yarn: 12K T700S 50C carbon fiber
Weft type of yarn: Glass thermoplastic
Warp reinforcement ratio: 99%
Weft reinforcement ratio: 1%
Warp thread count: 5 ends (threads) / cm
Weft thread count: 1 end (threads) / cm
MECHANICAL PROPERTIES OF 12K T700S 50C CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 230
Elongation at break (%): 2.1

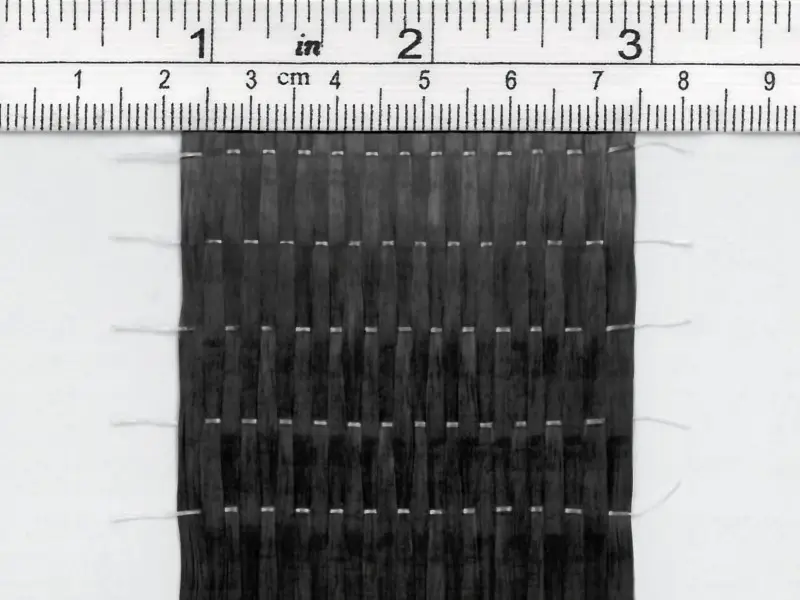

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
