Carbon fiber tape roll width 53 cm TC960XI53
Carbon fiber tape roll width 53 cm TC960XI53 - Image 2
Carbon fiber tape roll width 53 cm TC960XI53
Carbon fiber tape roll width 53 cm TC960XI53
$935.98 Add to cart
Carbon fiber tape roll width 59 cm TC200X59 Carbon fiber tape roll width 59 cm TC200X59 $482.92
Carbon fiber tape roll width 80 cm TC400X80 Carbon fiber tape roll width 80 cm TC400X80 $680.00

Carbon fiber tape roll width 53 cm TC960XI53

$935.98

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Carbon fiber tape roll width 53 cm TC960XI53
Carbon fiber tape roll width 53 cm TC960XI53
$935.98

[wpforms id=”1190″ title=”true” description=”Request a call back”]

carbon fabric tape 53 cm, carbon fibre 24k, carbon fabric triaxial 960 g

Roll length: 50 lm
Roll m2: 26.50 m2
Roll price: 935.98 EUR / 50 lm roll
Price / lm.: 18.72 EUR
Price / m2: 35.32 EUR

TECHNICAL CHARACTERISTICS
Width: 53 cm
Areal weight: 960 g / m2
Weaving style: Triaxial -23/90/+23
-23 ply: 24K carbon fiber, 33.43% (321 g / m2)
90 ply: 24K carbon fiber, 33.32% (320 g / m2)
+23 ply: 24K carbon fiber, 33.43% (321 g / m2)
Stitching fiber: polyester 110dtex, 2% (8 g / m2), tricot

MECHANICAL PROPERTIES OF 24K CARBON FIBER USED
Tensile strength (MPa): 4300
Tensile modulus (GPa): 235
Elongation at break (%): 1.8

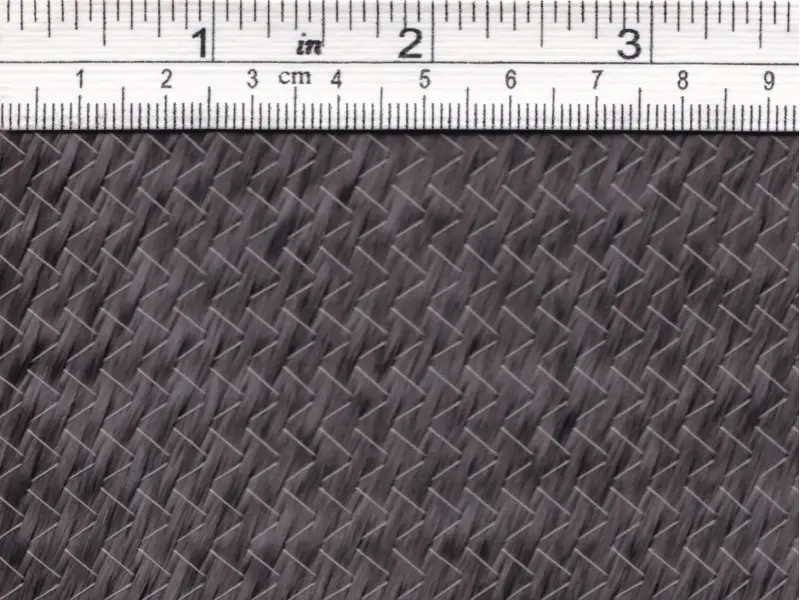

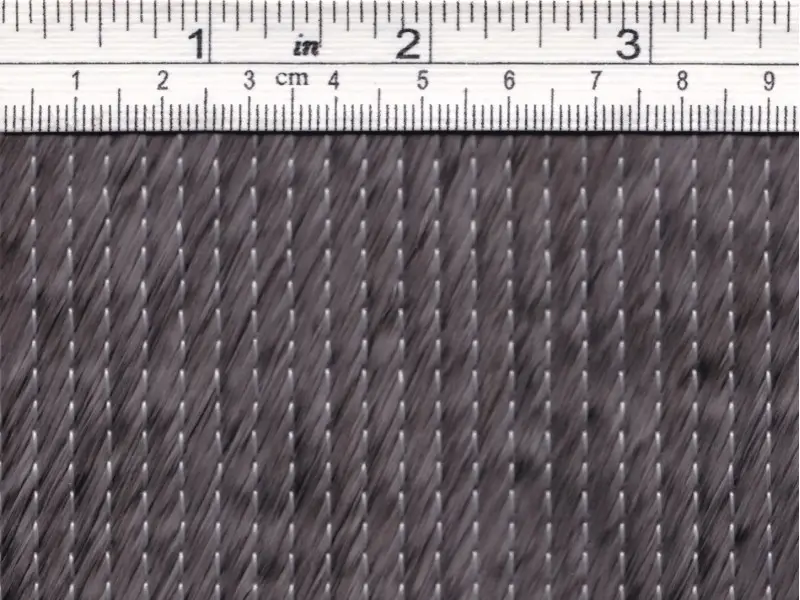

Please click on picture, for a closer view to the fabric's real size.
