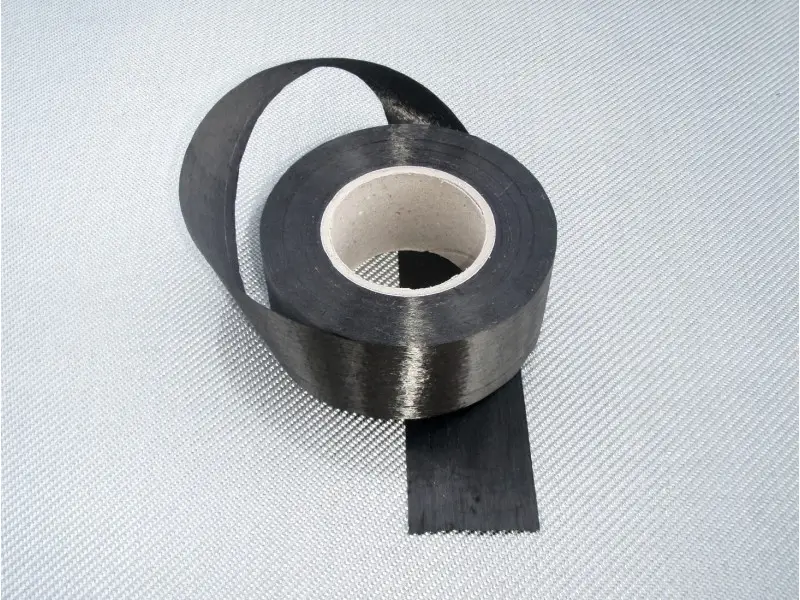

Carbon fiber tape roll width 6 cm TC80U06

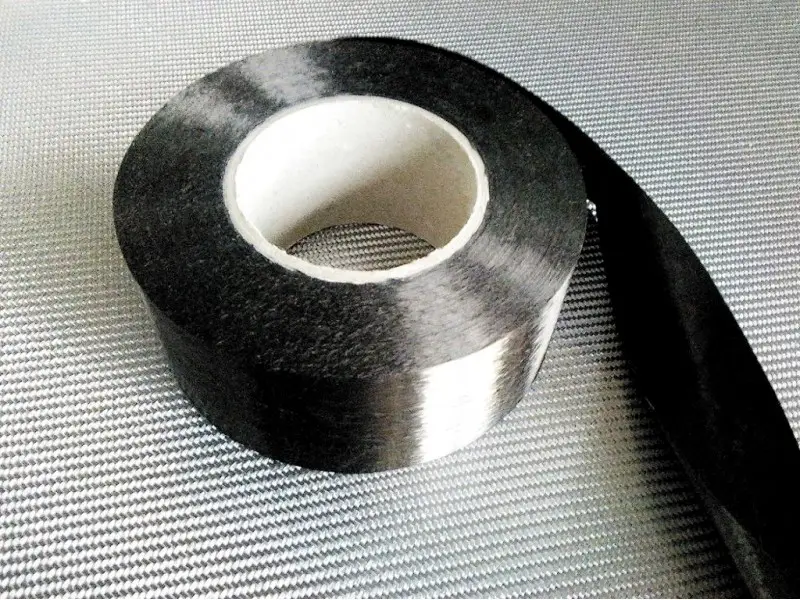

Carbon fiber tape roll width 6 cm TC80U06 - Image 2

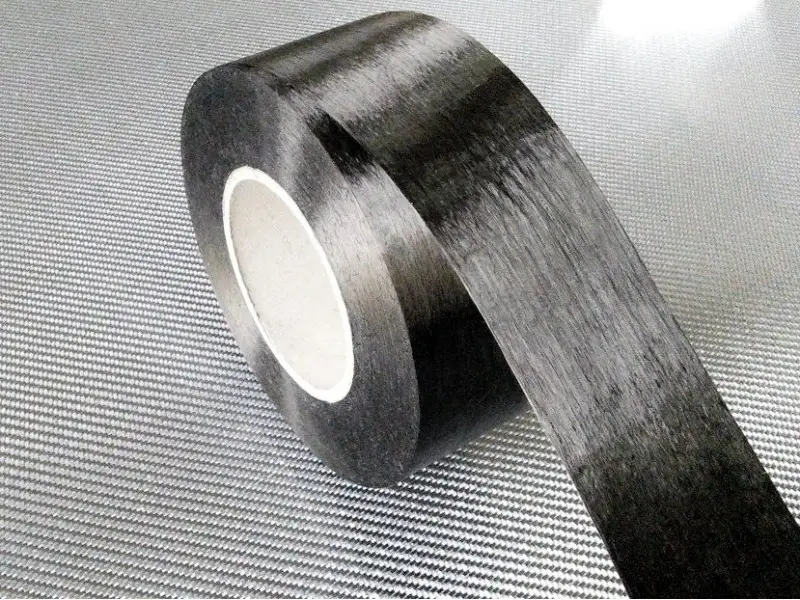

Carbon fiber tape roll width 6 cm TC80U06 - Image 3

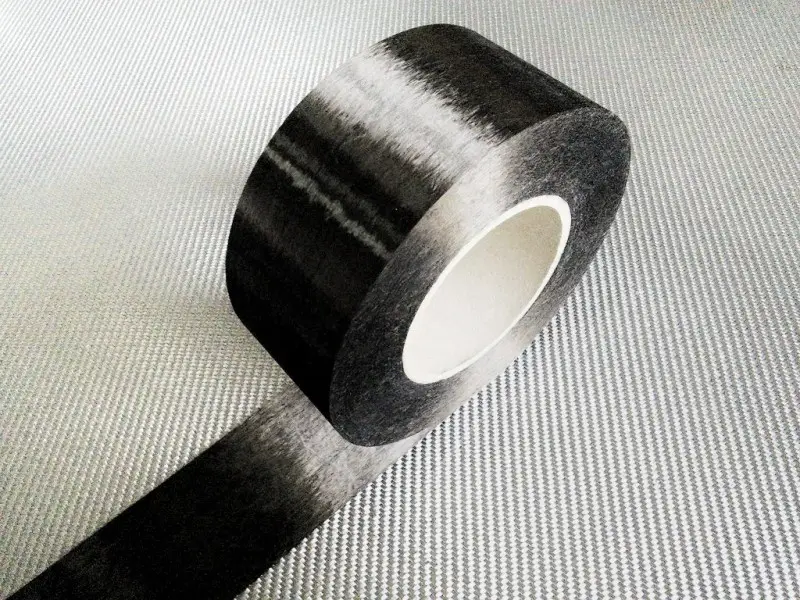

Carbon fiber tape roll width 6 cm TC80U06 - Image 4
Carbon fiber tape roll width 6 cm TC80U06
Carbon fiber tape roll width 6 cm TC80U06
$63.90 Add to cart
Carbon fiber tape width 5 cm TC600U05 Carbon fiber tape width 5 cm TC600U05 $1.61
Carbon fiber tape width 6 cm TC600U06 Carbon fiber tape width 6 cm TC600U06 $1.80

Carbon fiber tape roll width 6 cm TC80U06

$63.90

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Carbon fiber tape roll width 6 cm TC80U06
Carbon fiber tape roll width 6 cm TC80U06
$63.90

[wpforms id=”1190″ title=”true” description=”Request a call back”]

carbon fabric tape 6 cm, carbon fiber 15k tr50s, carbon fabric unidirectional 80 g

Roll length: 100 lm
Roll m2 : 6 m2
Roll price: 63.90 EUR / 100 lm roll
Price / lm. : 0.64 EUR
Price / m2 : 10.65 EUR

TECHNICAL CHARACTERISTICS
Width: 6 cm
Weaving style: Unidirectional, spread tow
Areal weight: 80 g / m2
Warp: 15K TR50S carbon fiber 100%
Weft: No weft (warp fibers are held in place by chemical binder and very thin, non prominent X-ply net (4 g / m2))

MECHANICAL PROPERTIES OF 15K TR50S CARBON FIBER
Tensile strength (MPa): 4900
Tensile modulus (GPa): 240
Elongation at break (%): 2.0
