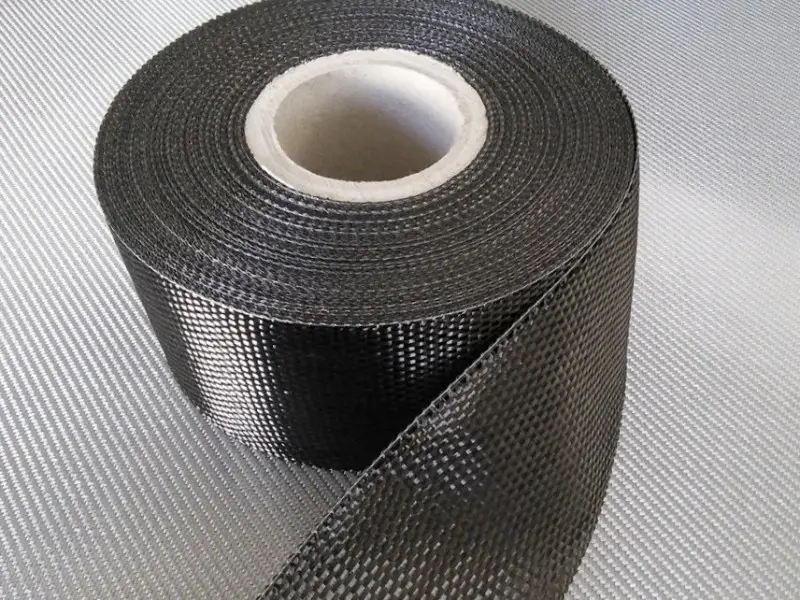

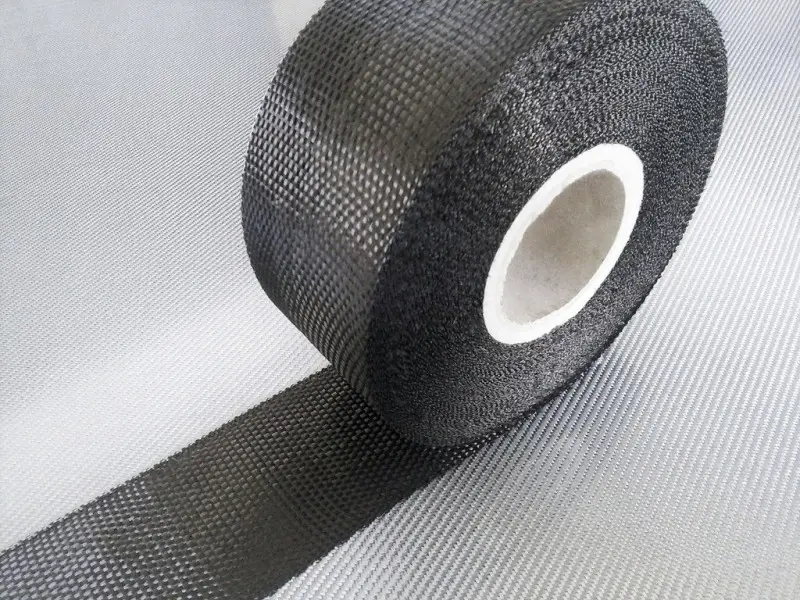

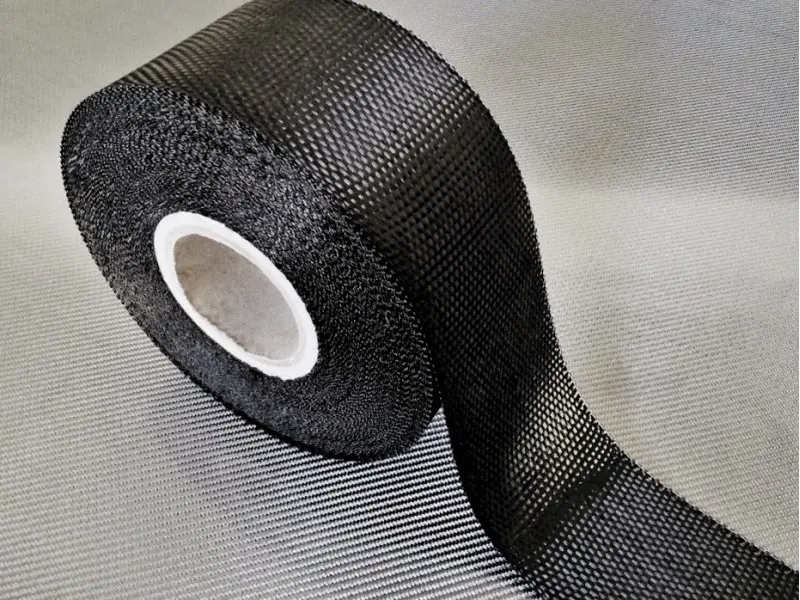

carbon fabric tape 10 cm, carbon fibre 3k hta40, carbon fabric plain 200 g
TECHNICAL CHARACTERISTICS
Width: 10 cm
Weaving style: Plain
Areal weight: 200 g / m2
Warp type of yarn: 3K ΗΤΑ40 carbon fiber
Weft type of yarn: 3K ΗΤΑ40 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Weaving style: Plain
Areal weight: 200 g / m2
Warp type of yarn: 3K ΗΤΑ40 carbon fiber
Weft type of yarn: 3K ΗΤΑ40 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
MECHANICAL PROPERTIES OF 3Κ ΗΤΑ40 CARBON FIBER
Tensile strength (MPa): 3950
Tensile modulus (GPa): 238
Elongation at break (%): 1.7
