carbon fabric tape 10 cm, carbon fiber 6k GRANOC XN-80-60S, carbon fabric ud 330 g
TECHNICAL CHARACTERISTICS
Width: 10 cm
Areal weight: 328 g / m2
Weaving style: Unidirectional, woven
Warp type of yarn: 12K carbon fiber
Weft type of yarn: 2 X E-glass 68tex
Warp reinforcement ratio: 90%
Weft reinforcement ratio: 10%
Warp thread count: 3.8 ends (threads) / cm
Weft thread count: 2.2 ends (threads) / cm
Areal weight: 328 g / m2
Weaving style: Unidirectional, woven
Warp type of yarn: 12K carbon fiber
Weft type of yarn: 2 X E-glass 68tex
Warp reinforcement ratio: 90%
Weft reinforcement ratio: 10%
Warp thread count: 3.8 ends (threads) / cm
Weft thread count: 2.2 ends (threads) / cm

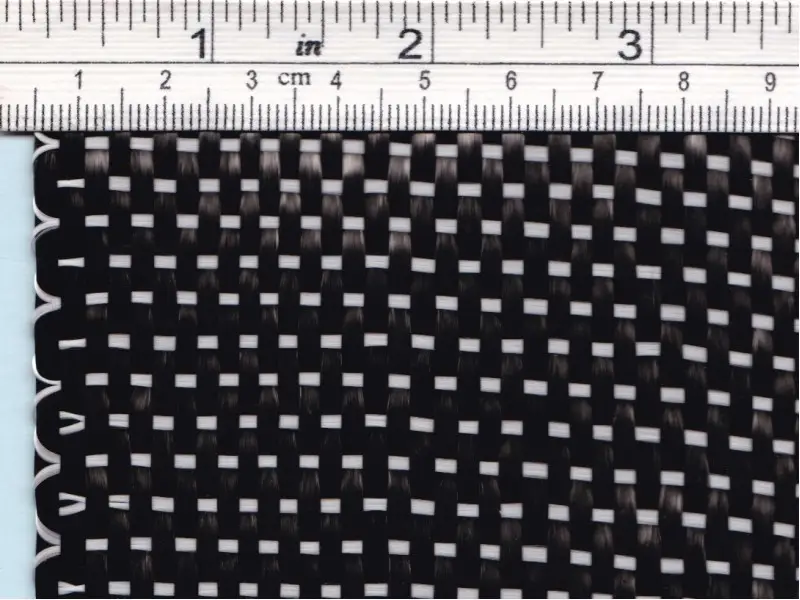

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
