carbon fabric tape 25 cm, carbon fiber 50k, carbon fabric ud 650 g
TECHNICAL CHARACTERISTICS
Width: 25.4 cm
Areal weight: 650 g / m2
Weaving style: Unidirectional, stitched, with veil
Warp type of yarn: 50K carbon fiber
Weft type of yarn: Polyester
Warp reinforcement ratio: 99%
Weft reinforcement ratio: 1%
Warp thread count: 2 ends (threads) / cm
Weft thread count: 1 end (thread) / cm
Areal weight: 650 g / m2
Weaving style: Unidirectional, stitched, with veil
Warp type of yarn: 50K carbon fiber
Weft type of yarn: Polyester
Warp reinforcement ratio: 99%
Weft reinforcement ratio: 1%
Warp thread count: 2 ends (threads) / cm
Weft thread count: 1 end (thread) / cm
MECHANICAL PROPERTIES OF 50K CARBON FIBER USED
Tensile strength (MPa): 4137
Tensile modulus (GPa): 242
Elongation at break (%): 1.64

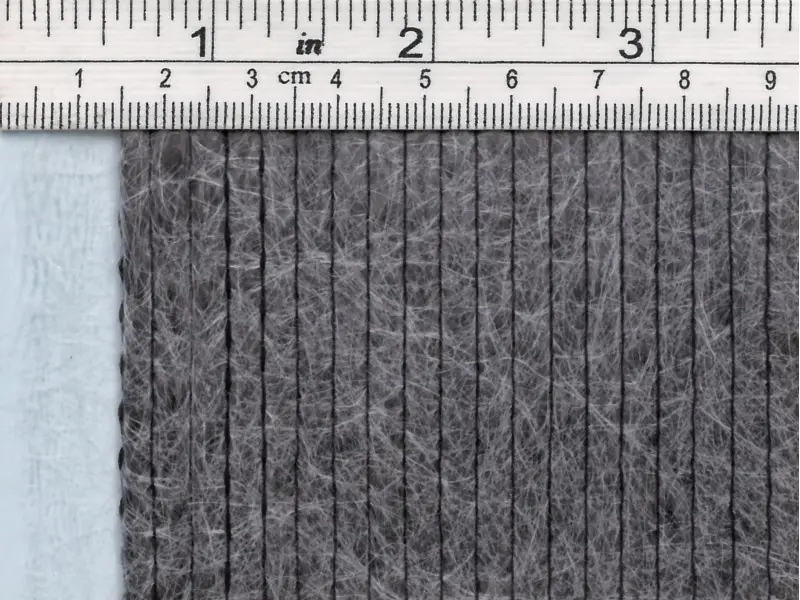

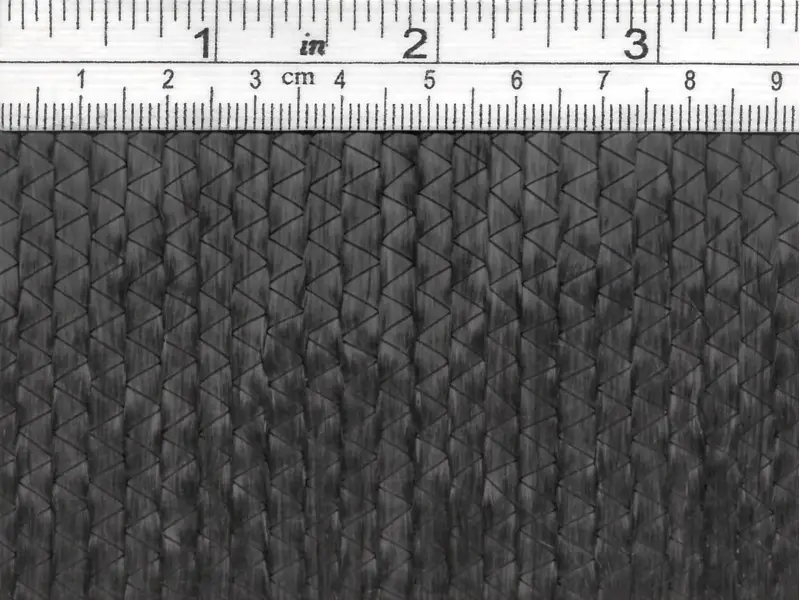

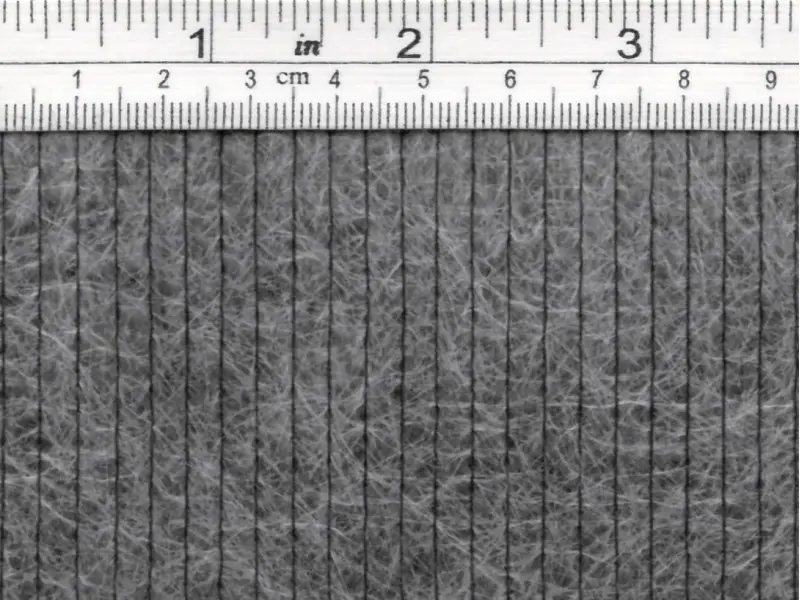

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
