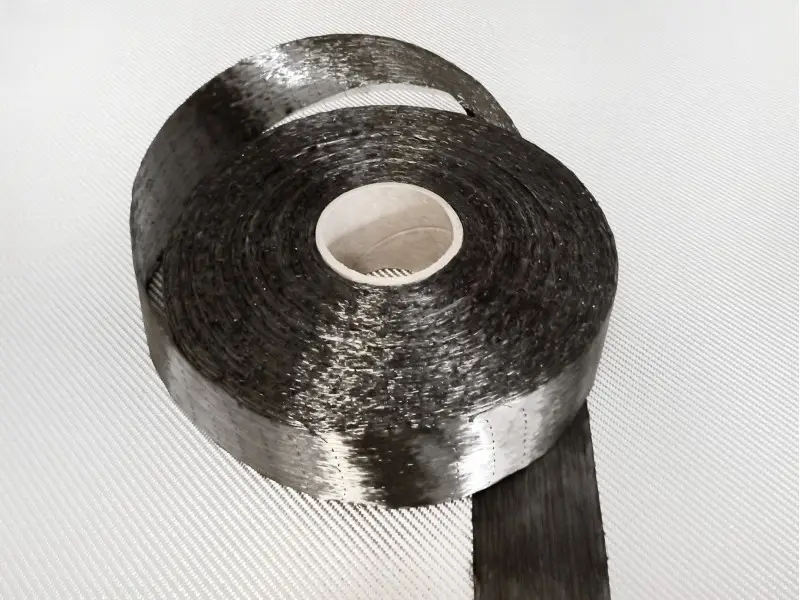

carbon fabric tape 6 cm, carbon fiber 24k h2550, carbon fabric ud 600 g
TECHNICAL CHARACTERISTICS
Width: 6 cm
Areal weight: 600 g / m2
Weaving style: Unidirectional, woven
Warp type of yarn: 24K H2550 carbon fiber
Weft type of yarn: Glass thermoplastic
Warp reinforcement ratio: 99%
Weft reinforcement ratio: 1%
Warp thread count: 5 ends (threads) / cm
Weft thread count: 1 end (threads) / cm
Areal weight: 600 g / m2
Weaving style: Unidirectional, woven
Warp type of yarn: 24K H2550 carbon fiber
Weft type of yarn: Glass thermoplastic
Warp reinforcement ratio: 99%
Weft reinforcement ratio: 1%
Warp thread count: 5 ends (threads) / cm
Weft thread count: 1 end (threads) / cm
MECHANICAL PROPERTIES OF 24K H2550 CARBON FIBER
Tensile strength (MPa): 5516
Tensile modulus (GPa): 250
Elongation at break (%): 2.2

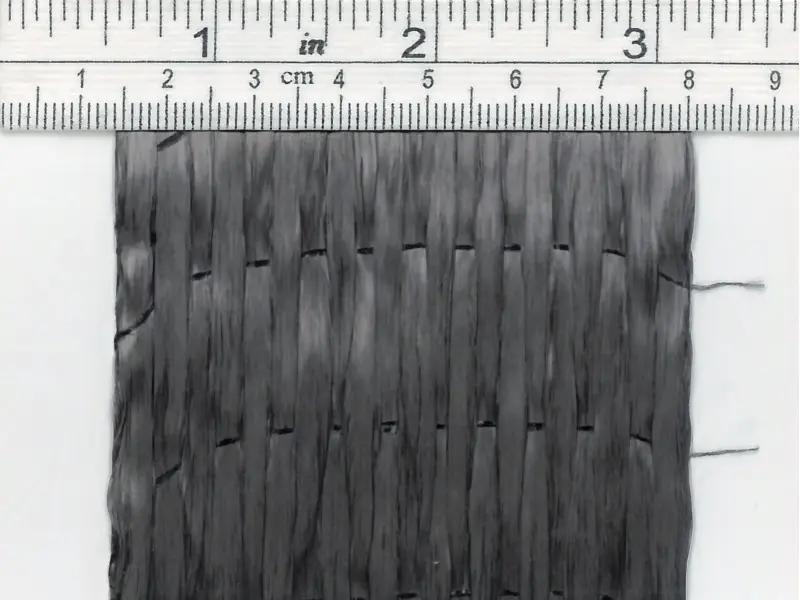

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
