Carbon prepreg C211T2pp, optimized for hot press
TECHNICAL CHARACTERISTICS
Fabric weight: 206 g / m2
Width: 1.00 meter
Width: 1.00 meter
Weaving style: Twill 2X2
Warp: 3K TR30S carbon fiber, 49.5%, 5.10 ends (threads) / cm
Weft: 3K TR30S carbon fiber, 50.5%, 5.20 ends / cm
Warp: 3K TR30S carbon fiber, 49.5%, 5.10 ends (threads) / cm
Weft: 3K TR30S carbon fiber, 50.5%, 5.20 ends / cm
Prepreg weight: 381 g / m2
Epoxy content: 46%
Volatile content: < 1%
Epoxy content: 46%
Volatile content: < 1%
RECOMMENDED CURING CYCLES
8 min at 150 oC
10 min at 145 oC
15 min at 140 oC
10 min at 145 oC
15 min at 140 oC
STORAGE LIFE
12 months at – 18 oC
3 weeks at room temperature
Allow prepreg roll to reach room temperature before opening plastic bag to prevent condensation.
3 weeks at room temperature
Allow prepreg roll to reach room temperature before opening plastic bag to prevent condensation.

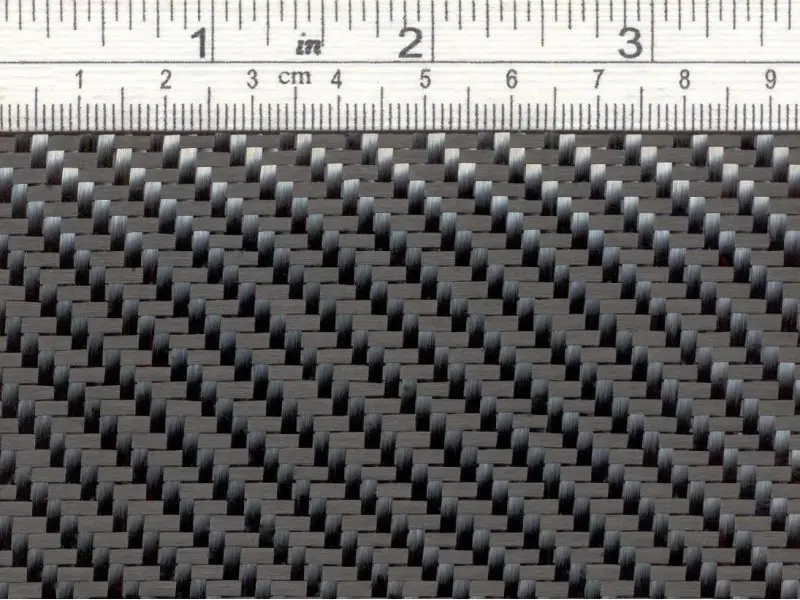

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
DISCLAIMER
All information herein is given for guidance and general information purposes only, represents typical properties, and should not be used for specification limits purposes or basis for design. Fibermax Ltd reserves the right to make modifications on fabrics, change yarns, specifications, and all information given herein, without notice. It is only on written certificates and agreements that we provide our customers with warrants for the quality and/or advise for the suitability of products for particular uses. Data sheets and certificates of conformity are promptly provided upon request with roll serial number.
