Carbon prepreg C201T2pp, general purpose
TECHNICAL CHARACTERISTICS
Fabric weight: 200 g / m2
Width: 1.00 meter
Width: 1.00 meter
Weaving style: Twill 2X2
Warp: 3K HTA 40 carbon fiber, 50%, 5 ends (threads) / cm
Weft: 3K HTA 40 carbon fiber, 50%, 5 ends / cm
Weft: 3K HTA 40 carbon fiber, 50%, 5 ends / cm
Prepreg weight: 344 g / m2
Epoxy content: 42%
Gel time at 115 oC: 18-23 min
Volatile content: < 1%
Epoxy content: 42%
Gel time at 115 oC: 18-23 min
Volatile content: < 1%
RECOMMENDED CURING TIME
Curing time is 60 minutes at 130 oC or 500 minutes at 85 oC. Different curing cycles could be applicable. The conditions and duration of prepreg processing can be adapted based on the specific requirements and circumstances of the curing process. The curing time and resin loss during the manufacturing process are directly related to the rapid heat transfer temperature of the mold thickness.
STORAGE LIFE
Room temperature (around 22 oC): > 1 month
0 oC: > 3 months
– 18 oC: > 6 months
Allow prepreg roll to reach room temperature before opening plastic bag to prevent condensation.
TYPICAL MECHANICAL PROPERTIES OF LAMINATE
Tensile strength (Mpa): 60 – 80
Bending strength (MPa): 90 – 110
Elongation at break (%): 4 – 5
Tensile strength (Mpa): 60 – 80
Bending strength (MPa): 90 – 110
Elongation at break (%): 4 – 5

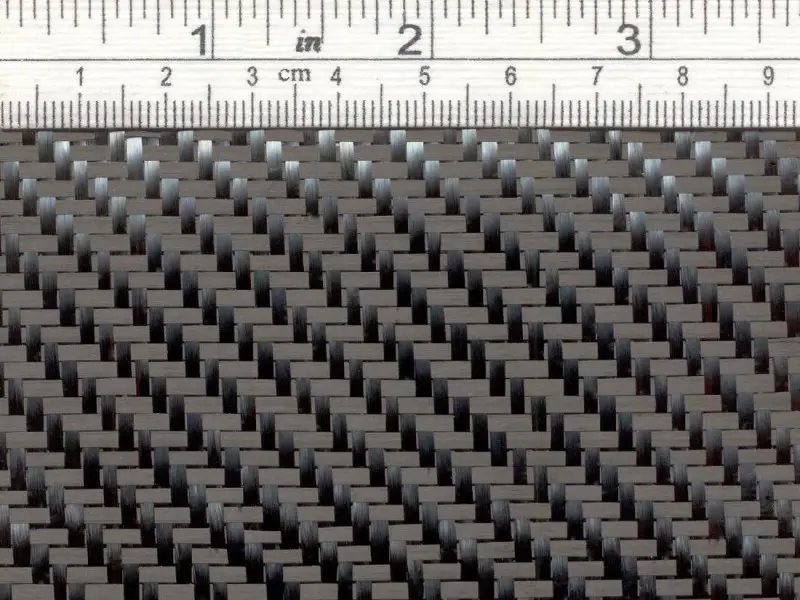

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
DISCLAIMER
All information herein is given for guidance and general information purposes only, represents typical properties, and should not be used for specification limits purposes or basis for design. Fibremax Ltd reserves the right to make modifications on fabrics, change yarns, specifications, and all information given herein, without notice. It is only on written certificates and agreements that we provide our customers with warrants for the quality and/or advise for the suitability of products for particular uses. Data sheets and certificates of conformity are promptly provided upon request with roll serial number.
