fiberglass fabric, glass fiber ec9 68, fibreglass fabric twill 162 g
TECHNICAL CHARACTERISTICS
Areal weight: 162 g / m2
Weaving style: Twill 2X2
Width: 1.00 meter
Warp type of yarn: Glass fiber EC9 68 tex
Weft type of yarn: Glass fiber EC9 68 tex
Warp reinforcement ratio: 52%
Weft reinforcement ratio: 48%
Warp thread count: 11.8 ends (threads) / cm
Weft thread count: 10.7 ends (threads) / cm
Weaving style: Twill 2X2
Width: 1.00 meter
Warp type of yarn: Glass fiber EC9 68 tex
Weft type of yarn: Glass fiber EC9 68 tex
Warp reinforcement ratio: 52%
Weft reinforcement ratio: 48%
Warp thread count: 11.8 ends (threads) / cm
Weft thread count: 10.7 ends (threads) / cm
Tensile strength on yarn (N): 48

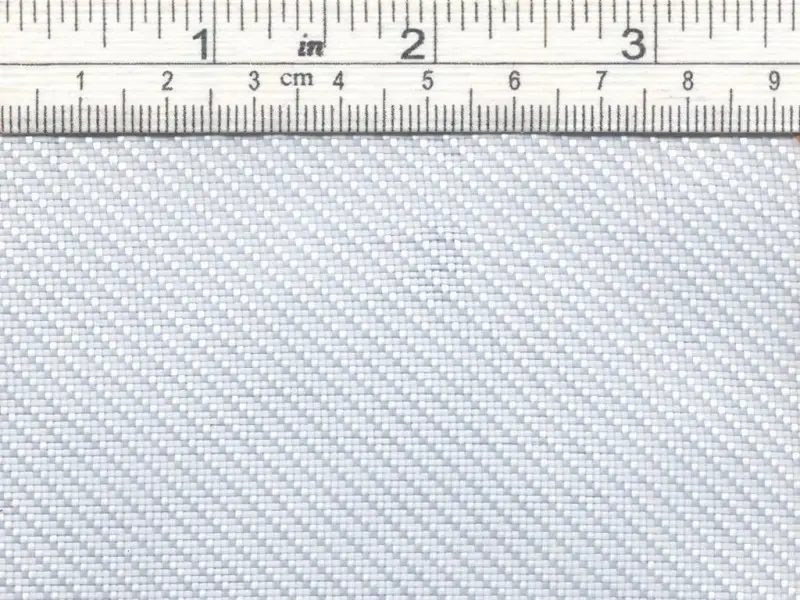

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
