fibreglass fabric twill 390g
$5.50 /m2
fibreglass fabric twill 390g
Product type: composite reinforcement supplied to the listed weave, areal weight and size. Key specifications: Areal weight: 390 g / m 2; Width: 1.26 meter.
In stock
fiberglass fabric, glass fiber ec13 272, fibreglass fabric twill 390 g
TECHNICAL CHARACTERISTICS
Areal weight: 390 g / m2
Weaving style: Twill 2X2
Width: 1.26 meter
Warp type of yarn: Glass fiber EC13 272
Weft type of yarn: Glass fiber EC11 272
Warp reinforcement ratio: 52%
Weft reinforcement ratio: 48%
Warp thread count: 7.5 ends (threads) / cm

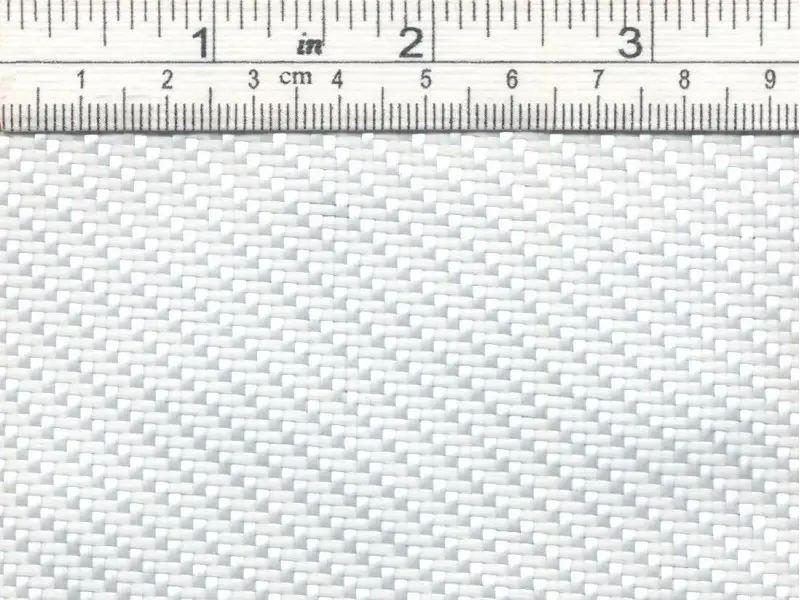

Weft thread count: 6.8 ends (threads) / cmPlease click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
Weaving style: Twill 2X2
Width: 1.26 meter
Warp type of yarn: Glass fiber EC13 272
Weft type of yarn: Glass fiber EC11 272
Warp reinforcement ratio: 52%
Weft reinforcement ratio: 48%
Warp thread count: 7.5 ends (threads) / cm
Weft thread count: 6.8 ends (threads) / cmPlease click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 390 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
