fiberglass fabric, glass fiber ec13 136, fibreglass fabric plain 195 g
TECHNICAL CHARACTERISTICS
Areal weight: 195 g / m2
Weaving style: Plain
Width: 1.00 meter
Warp type of yarn: Glass fiber EC13 136 tex
Weft type of yarn: Glass fiber EC13 136 tex
Warp reinforcement ratio: 57%
Weft reinforcement ratio: 43%
Warp thread count: 8 ends (threads) / cm
Weft thread count: 6 ends (threads) / cm
Tensile strength on yarn (N): 92
Weaving style: Plain
Width: 1.00 meter
Warp type of yarn: Glass fiber EC13 136 tex
Weft type of yarn: Glass fiber EC13 136 tex
Warp reinforcement ratio: 57%
Weft reinforcement ratio: 43%
Warp thread count: 8 ends (threads) / cm
Weft thread count: 6 ends (threads) / cm
Tensile strength on yarn (N): 92

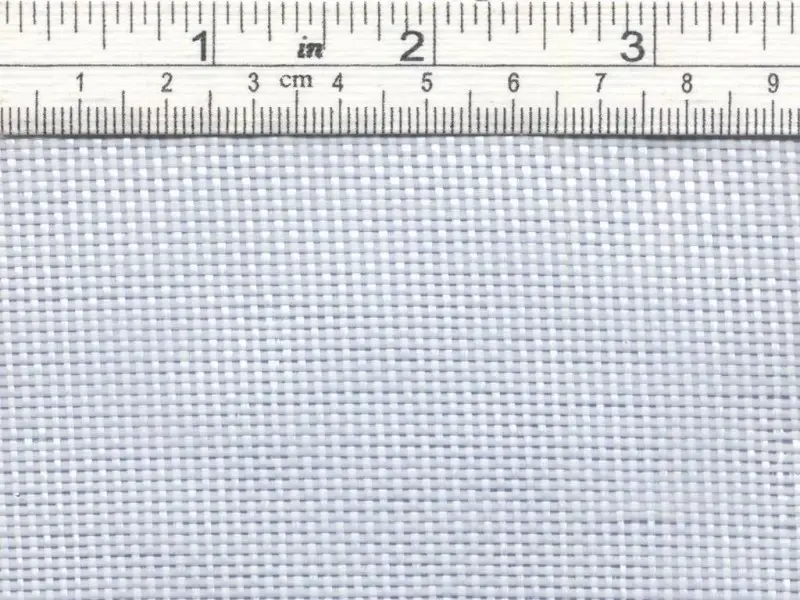

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
