fibreglass fabric plain 224g
$6.45 /m2
fibreglass fabric plain 224g
Product type: composite reinforcement supplied to the listed weave, areal weight and size. Key specifications: Areal weight: 224 g / m 2; Width: 1.00 meter.
In stock
fiberglass fabric, glass fiber ec11 204, fibreglass fabric plain 224 g
TECHNICAL CHARACTERISTICS
Areal weight: 224 g / m2
Weaving style: Plain
Width: 1.00 meter
Warp type of yarn: Glass fiber EC11 204
Weft type of yarn: Glass fiber EC11 204
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 5.6 ends (threads) / cm
Weft thread count: 5.6 ends (threads) / cm
Weaving style: Plain
Width: 1.00 meter
Warp type of yarn: Glass fiber EC11 204
Weft type of yarn: Glass fiber EC11 204
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 5.6 ends (threads) / cm
Weft thread count: 5.6 ends (threads) / cm
Tensile strength on yarn (N): 116

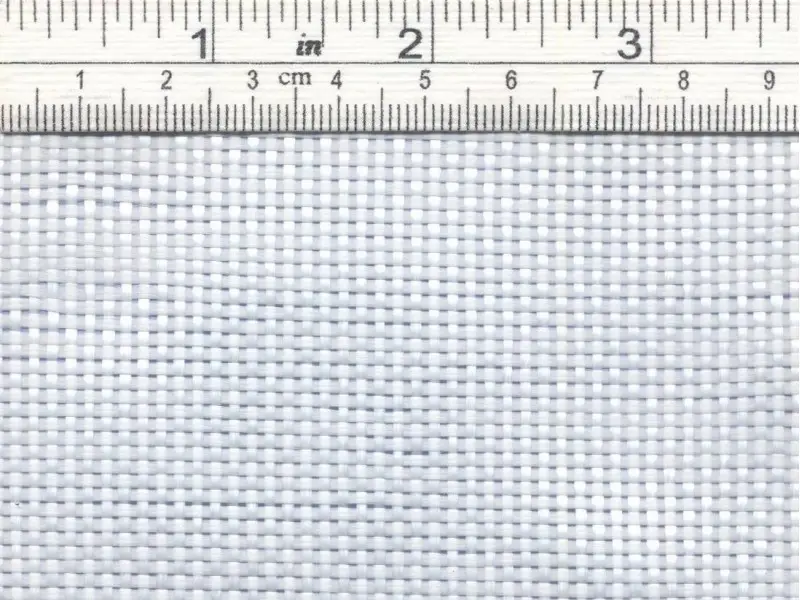

Please click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 224 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
