fiberglass fabric, glass fiber ec9 68, fibreglass fabric satin 213 g
TECHNICAL CHARACTERISTICS
Areal weight: 213 g / m2
Weaving style: Satin
Width: 1.00 and 1.20 meters
Warp type of yarn: Glass fiber EC9 68
Weft type of yarn: Glass fiber EC9 68
Warp reinforcement ratio: 61%
Weft reinforcement ratio: 39%
Warp thread count: 19 ends (threads) / cm
Weft thread count: 12 ends (threads) / cm
Weaving style: Satin
Width: 1.00 and 1.20 meters
Warp type of yarn: Glass fiber EC9 68
Weft type of yarn: Glass fiber EC9 68
Warp reinforcement ratio: 61%
Weft reinforcement ratio: 39%
Warp thread count: 19 ends (threads) / cm
Weft thread count: 12 ends (threads) / cm
Tensile strength on yarn (N): 48

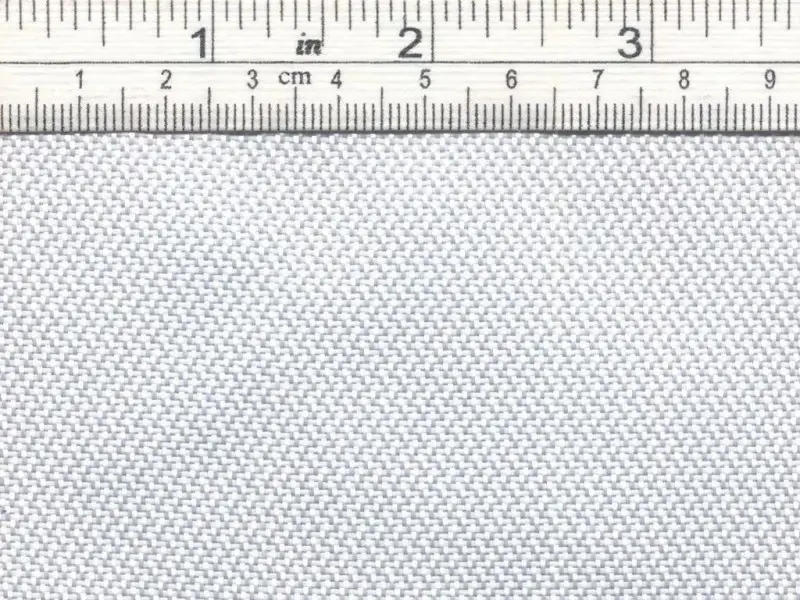

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
